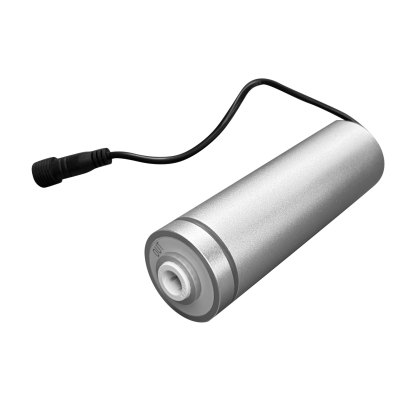

BU-B-UC06FA-034-10L

Features:

Main Body Size	Φ40.5*L135mm (by physical object)
Rated Voltage	Customization
Power	11w
Radiation Light Power	240mW
Wavelength Peak (λp)	260-280nm
Design Flow	10 L/min
Sterilizing Rate	99.99% (Coli group); 99.9% (2000 CFU/mL natural bacteria)
Heat Radiation	Metal heat dissipation
Static Pressure	20kg
Internal Protection Class	IPX6 (Not waterproof on the outside)
Remarks	The inlet water of the module sterilization front end needs to be filtered

Data Sheet:

👉Check the link

Warranty period	1. Module service life L70 > 10,000 hours; 2. One-year basic warranty provided; industrial-grade modules may be extended (requires signing a customized agreement).
Core Coverage Scope	1. Guaranteed zero ozone and zero mercury pollution; 2. During the warranty period, we cover issues such as reduced sterilization efficiency (below the 99.99% standard) due to material/manufacturing defects, UVC chip failure, or optical reflection material problems, providing free repair or replacement services.
Exemptions from Liability	This clause covers damage or loss caused by factors unrelated to the product itself, such as improper installation, improper use, or unauthorized disassembly of the equipment.
After-sales support	1. Provide multilingual operating manuals (including UVC module maintenance guides) with 48-hour remote video troubleshooting support; 2. Supply product inspection reports (e.g., Guangdong Provincial Microbial Analysis Test Report) to assist with compliance audits; 3. Offer technical integration support for bulk purchasers (e.g., water purifier manufacturers), guiding module compatibility and installation with end devices.
Safety and Quality Issues	If safety incidents or product discontinuation occur due to LEDINTRO's product quality issues, LEDINTRO shall bear full responsibility and assist in investigating the cause upon confirmation by both parties or a mutually agreed third-party institution.
	LEDINTRO reserves the right of final interpretation.
