UVA LED 365nm-60°-45*45mil

Name: UVA LED 365nm-60°-45*45mil
SKU: UVA 365nm * 50pcs
Price: 0.68 USD
Availability: OutOfStock

$33.25 USD

Amount

UVA 365nm * 1 pcs UVA 365nm * 50 pcs UVA 365nm * 200pcs UVA 365nm * 1000 pcs

Quantity

Features

LED Chip: Single Wave Deep Ultraviolet Chip
High thermal conductivity aluminum nitride ceramic support, low thermal resistance, high reliability.
Built-in Zener Diode, anti-voltage protection
High transmittance rate quartz glass lens package
Lead free production, RoHS compliant.

Skin disease treatment: in phototherapy can be used for the treatment of a variety of skin diseases, such as psoriasis, vitiligo, pityriasis rosea, atopic dermatitis, etc.
Promote vitamin D synthesis: the appropriate amount of 295nm ultraviolet irradiation of human skin, can promote the 7-dehydrocholesterol in the skin into vitamin D3, thus promoting the absorption of calcium and bone growth and development, prevent rickets and other diseases.

Material aging test: it can simulate the ultraviolet light in natural sunlight.
Photography technology: 295nm ultraviolet light can be used for the exposure of photoresist, by controlling the exposure dose and time, to achieve high precision micro-nano pattern production.

Other applications: fluorescence spectroscopy detection, optical sensor, biological analysis / detection, anti-counterfeiting detection, etc.

Type	Items	Symbol	Test Condition	Min	Typical	Max	Unit
UVA	Radiant Power	Φe	IF=1000mA	2200	-	2600	mW
	Forward Voltage	VF	IF=1000mA	3.6	3.8	4.2	V
	Peak Wavelength	WLP	IF=1000mA	365	-	370	nm
	Spectral Half-Width	FWHM	IF=350mA	-	14	-	nm
	Reverse Current	IR	VR=-5V	0	-	1	uA
	Luminous Angle	2θ1/2	IF=1000mA	-	60	-	Deg.

Parameter	Symbol	Rating	Unit
Forward Current	If	1000	mA
Junction Temperature	TJ	80	°C
Thermal Resistance	RthJ-S	40	°C/W
Soldering Temperature	Tsol	260 (<=10s)	°C
Storage Temperature	Tstg	-25~60	°C

Voltage Binning Table (@IF=1000mA, Unit: V)

BIN CODE	MIN	MAX	BIN CODE	MIN	MAX
VF-A	3.3	3.4	VF-E	3.6	3.8
VF-B	3.4	3.5	VF-F	3.8	4.0
VF-C	3.5	3.6	VF-J	4.0	4.2

Wavelength Binning Table (@IF=1000mA, Unit: nm)

BIN CODE	MIN	MAX
WC-A	360	365
WC-B	365	370

Luminous Binning Table (@IF=1000mA, Unit: mW)

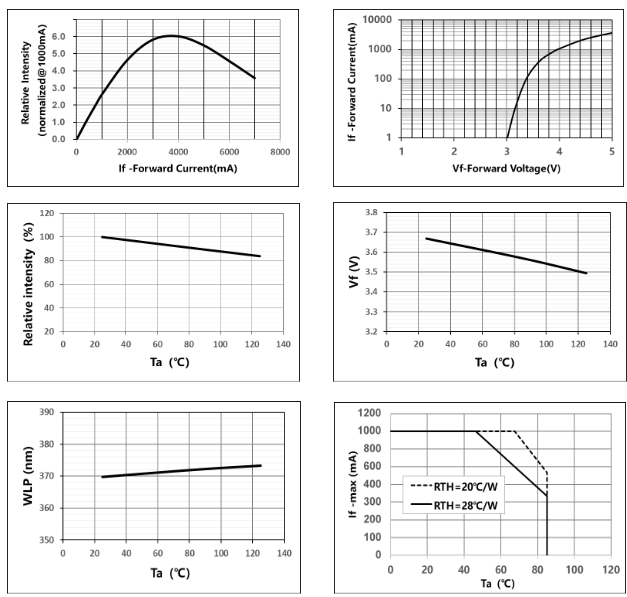

Typical Characteristics (Tₐ=25℃)

Warranty period	1. Module service life L70 > 10,000 hours; 2. One-year basic warranty provided; industrial-grade modules may be extended (requires signing a customized agreement).
Core Coverage Scope	1. Guaranteed zero ozone and zero mercury pollution; 2. During the warranty period, we cover issues such as reduced sterilization efficiency (below the 99.99% standard) due to material/manufacturing defects, UVC chip failure, or optical reflection material problems, providing free repair or replacement services.
Exemptions from Liability	This clause covers damage or loss caused by factors unrelated to the product itself, such as improper installation, improper use, or unauthorized disassembly of the equipment.
After-sales support	1. Provide multilingual operating manuals (including UVC module maintenance guides) with 48-hour remote video troubleshooting support; 2. Supply product inspection reports (e.g., Guangdong Provincial Microbial Analysis Test Report) to assist with compliance audits; 3. Offer technical integration support for bulk purchasers (e.g., water purifier manufacturers), guiding module compatibility and installation with end devices.
Safety and Quality Issues	If safety incidents or product discontinuation occur due to LEDINTRO's product quality issues, LEDINTRO shall bear full responsibility and assist in investigating the cause upon confirmation by both parties or a mutually agreed third-party institution.
	LEDINTRO reserves the right of final interpretation.
