UVA LED 385nm-60°-45*45mil

Name: UVA LED 385nm-60°-45*45mil
SKU: 18072956422847243646651885
Price: 0.48 USD
Availability: OutOfStock

$465.00 USD

Amount

UVA 385nm * 1pcs UVA 385nm * 50pcs UVA 385nm * 200pcs UVA 385nm * 1000pcs

Quantity

Features

LED Chip: Single Wave Deep Ultraviolet Chip
High thermal conductivity aluminum nitride ceramic support, low thermal resistance, high reliability
Built-in Zener Diode, anti-voltage protection
High transmission rate quartz glass lens package
Lead free product, RoHS compliant

Curing field:UV LED can be used for UV ink curing, printing, etc. It enables accelerated curing, while also improving the wear resistance and gloss of printed products. It is widely applied in label printing, packaging printing, etc.
Electronic manufacturing:UV LED light quickly solidifies UV glue, and this curing technology helps improve production efficiency and product reliability.
3D printing:The robust electronic control scheme is mature, with fast response and strong controllability. It has been widely used in 3D printing.
Material aging test field:It can simulate the ultraviolet light in natural sunlight.
Photography technology:Ultraviolet light can be used for the exposure of photosensitive materials. By precisely controlling the exposure dose and time, it can achieve high-precision micro-nano pattern production.
Other applications:Fluorescence spectroscopy detection, optical sensor, biological analysis/detection, anti-counterfeiting detection, etc.

Type	Items	Symbol	Test Condition	Min	Typical	Max	Unit
UVA	Optimal Power	Φe	If=1000mA	1400		1600	mW
	Forward Voltage	VF	If=1000mA	3.3		4.0	V
	Peak Wavelength	VILP	If=1000mA	380		390	nm
	Reverse Current	IR	VR=-5V	0		1	uA
	Luminous Angle	2θ1/2	If=1000mA		60		Deg

Parameter	Symbol	Rating	Unit
Forward Current	If	1500	mA
Junction Temperature	Tj	125	°C
Thermal Resistance	RthJ-S	5	°C/W
Soldering Temperature	Tsol	260 (<=10s)	°C
Storage Temperature	Tstg	-40~100	°C

Voltage Binning Table (@IF=1000mA, Unit: V)

BIN CODE	MIN	MAX	BIN CODE	MIN	MAX
VF-A	3.3	3.4	VF-E	3.7	3.8
VF-B	3.4	3.5	VF-F	3.8	3.9
VF-C	3.5	3.6	VF-J	3.9	4.0
VF-D	3.6	3.7

Wavelength Binning Table (@IF=1000mA, Unit: nm)

BIN CODE	MIN	MAX
WC-A	380	385
WC-B	385	390

Luminous Binning Table (@IF=1000mA, Unit: mW)

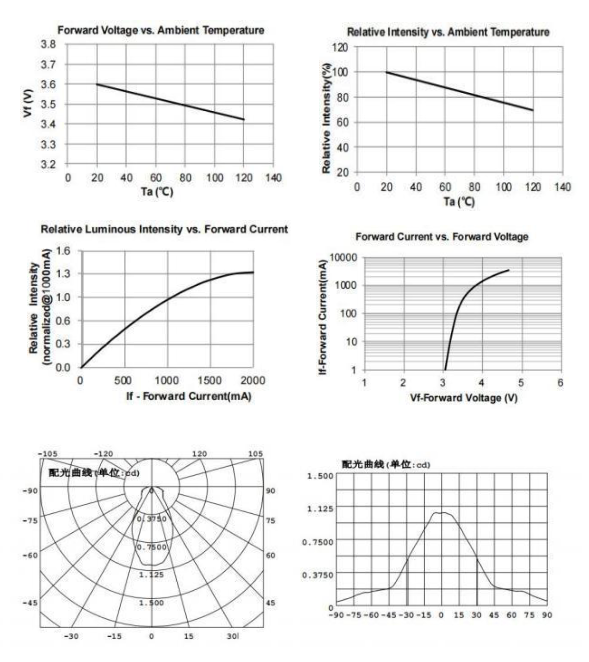

Typical Characteristics (Tₐ=25℃)

Warranty period	1. Module service life L70 > 10,000 hours; 2. One-year basic warranty provided; industrial-grade modules may be extended (requires signing a customized agreement).
Core Coverage Scope	1. Guaranteed zero ozone and zero mercury pollution; 2. During the warranty period, we cover issues such as reduced sterilization efficiency (below the 99.99% standard) due to material/manufacturing defects, UVC chip failure, or optical reflection material problems, providing free repair or replacement services.
Exemptions from Liability	This clause covers damage or loss caused by factors unrelated to the product itself, such as improper installation, improper use, or unauthorized disassembly of the equipment.
After-sales support	1. Provide multilingual operating manuals (including UVC module maintenance guides) with 48-hour remote video troubleshooting support; 2. Supply product inspection reports (e.g., Guangdong Provincial Microbial Analysis Test Report) to assist with compliance audits; 3. Offer technical integration support for bulk purchasers (e.g., water purifier manufacturers), guiding module compatibility and installation with end devices.
Safety and Quality Issues	If safety incidents or product discontinuation occur due to LEDINTRO's product quality issues, LEDINTRO shall bear full responsibility and assist in investigating the cause upon confirmation by both parties or a mutually agreed third-party institution.
	LEDINTRO reserves the right of final interpretation.
