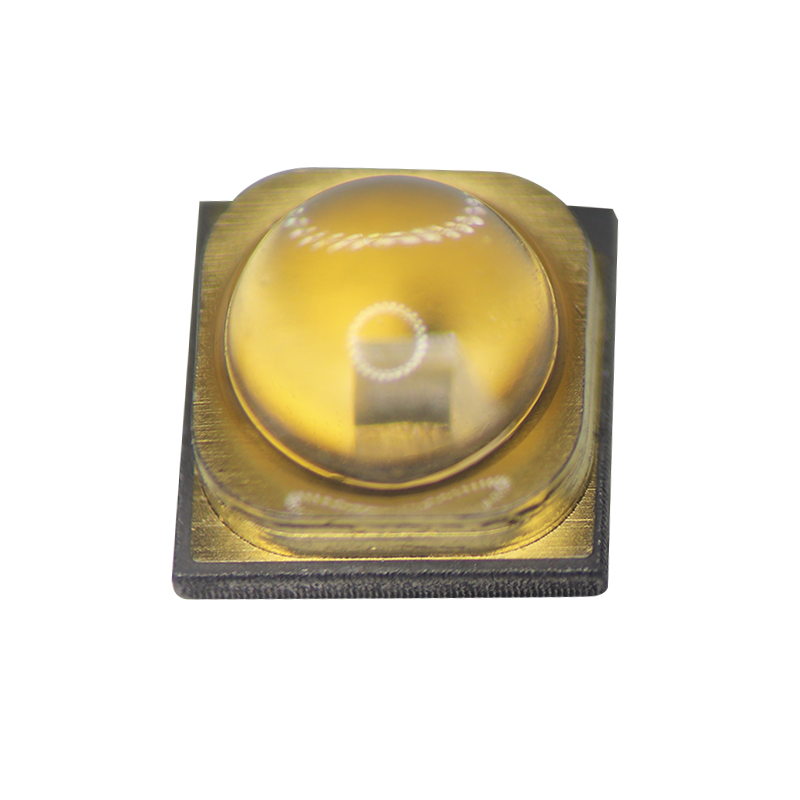

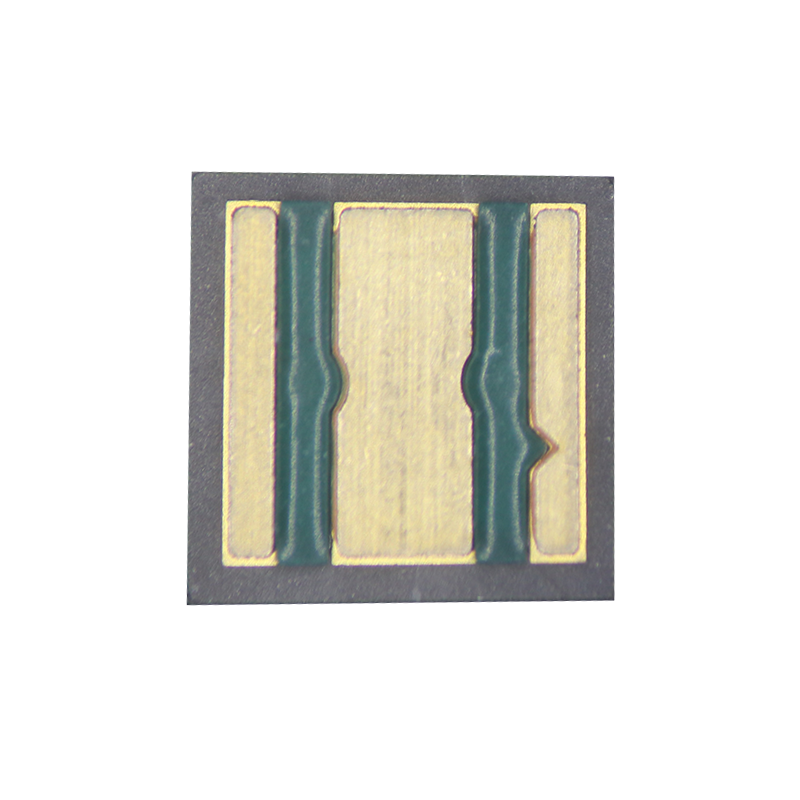

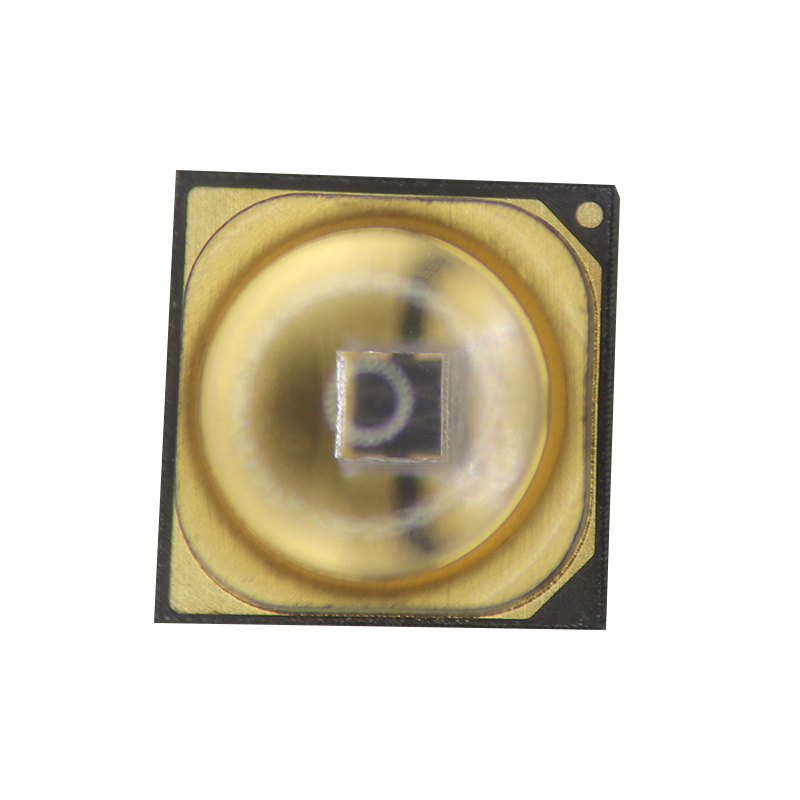

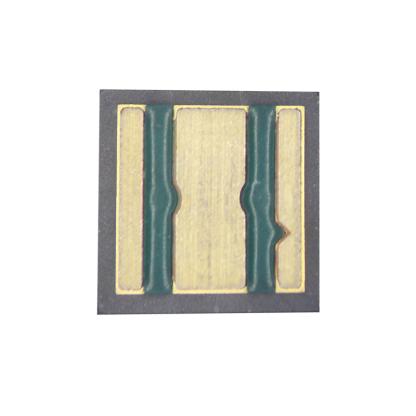

UVA LED 405nm-60°-30*30mil

Name: UVA LED 405nm-60°-30*30mil
SKU: 18072956459544047824661885
Price: 0.48 USD
Availability: OutOfStock

$23.25 USD

Amount

UVA 405nm * 1pcs UVA 405nm * 50pcs UVA 405nm * 200pcs UVA 405nm * 1000pcs

Quantity

Features

LED Chip: Single Wave Deep Ultraviolet Chip
High thermal conductivity aluminum nitride ceramic support, low thermal resistance, high reliability.
Built-in Zener Diode, anti-voltage protection
High transmission rate quartz glass lens package
Lead free product RoHS compliant.

Surface sterilizationmedical appliances, maternal and infant supplies, smart toilet, refrigerator, tableware cabinet, fresh-keeping box, smart trash can, Thermos Cup, escalator, hand and ticket machine buttons and other high-frequency public contact surfaces
Still Water SterilizationDrinking Water tank, humidifier, ice machine
Mobile Water SterilizationMobile Water Sterilization Module, Direct Drinking Water Machine;
Air SterilizationAir Purifier, air conditioning;
Industrial ApplicationsMedical phototherapy, fluorescence spectrum detection, optical sensors, biological analysis/detection, anti-counterfeit detection, etc.

Specification	Details

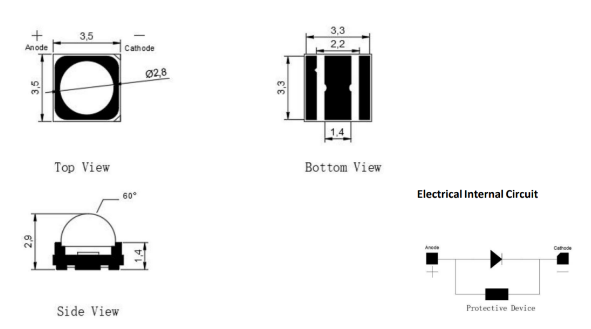

Lamp Size (mm)	3.5×3.5×2.9 (L×W×H)
Type of Stent	ALN ceramics
Lens Type	Quartz glass
Package Mode	Semi inorganic encapsulation
Luminous Type	1pcs UVA
Zener diode	1pcs
WP UVC	390-405nm
Luminous Angle	60°
Driving Current	500mA

Type	Items	Symbol	Test Condition	Min	Typical	Max	Unit
UVA	Radiant Power	Φe	IF=500mA	700	900	1000	mW
	Forward Voltage	VF	IF=500mA	3.4	-	3.8	V
	Peak Wavelength	WLP	IF=500mA	390	395	405	nm
	Spectral Half-Width	FWHM	IF=500mA	-	12	-	nm
	Reverse Current	IR	VR=-5V	0	-	10	uA
	Luminous Angle	2θ1/2	IF=500mA	-	60	-	Deg.

Parameter	Symbol	Rating	Unit
Forward Current	If	700	mA
Junction Temperature	TJ	110	°C
Thermal Resistance	RthJ-S	≤20	°C/W
Soldering Temperature	Tsol	260 (<=10s)	°C
Storage Temperature	Tstg	-40~85	°C

Voltage Binning Table @IF=500mA (Unit: V)

Wavelength Binning Table @IF=500mA (Unit: nm)

Luminous Binning Table @IF=500mA (Unit: mW)

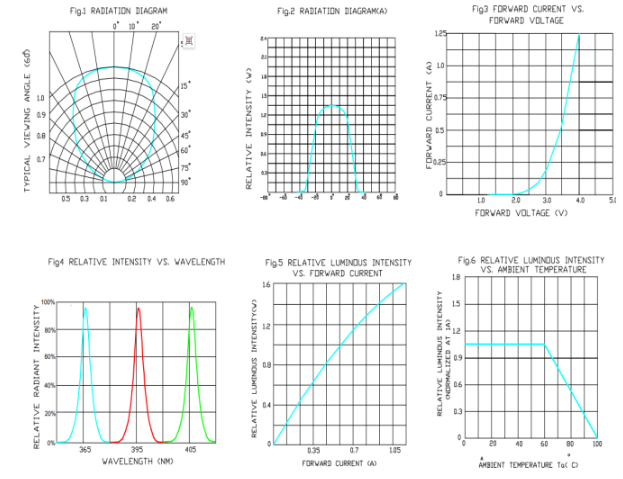

Typical Characteristics (Tₐ=25℃)

Warranty period	1. Module service life L70 > 10,000 hours; 2. One-year basic warranty provided; industrial-grade modules may be extended (requires signing a customized agreement).
Core Coverage Scope	1. Guaranteed zero ozone and zero mercury pollution; 2. During the warranty period, we cover issues such as reduced sterilization efficiency (below the 99.99% standard) due to material/manufacturing defects, UVC chip failure, or optical reflection material problems, providing free repair or replacement services.
Exemptions from Liability	This clause covers damage or loss caused by factors unrelated to the product itself, such as improper installation, improper use, or unauthorized disassembly of the equipment.
After-sales support	1. Provide multilingual operating manuals (including UVC module maintenance guides) with 48-hour remote video troubleshooting support; 2. Supply product inspection reports (e.g., Guangdong Provincial Microbial Analysis Test Report) to assist with compliance audits; 3. Offer technical integration support for bulk purchasers (e.g., water purifier manufacturers), guiding module compatibility and installation with end devices.
Safety and Quality Issues	If safety incidents or product discontinuation occur due to LEDINTRO's product quality issues, LEDINTRO shall bear full responsibility and assist in investigating the cause upon confirmation by both parties or a mutually agreed third-party institution.
	LEDINTRO reserves the right of final interpretation.
