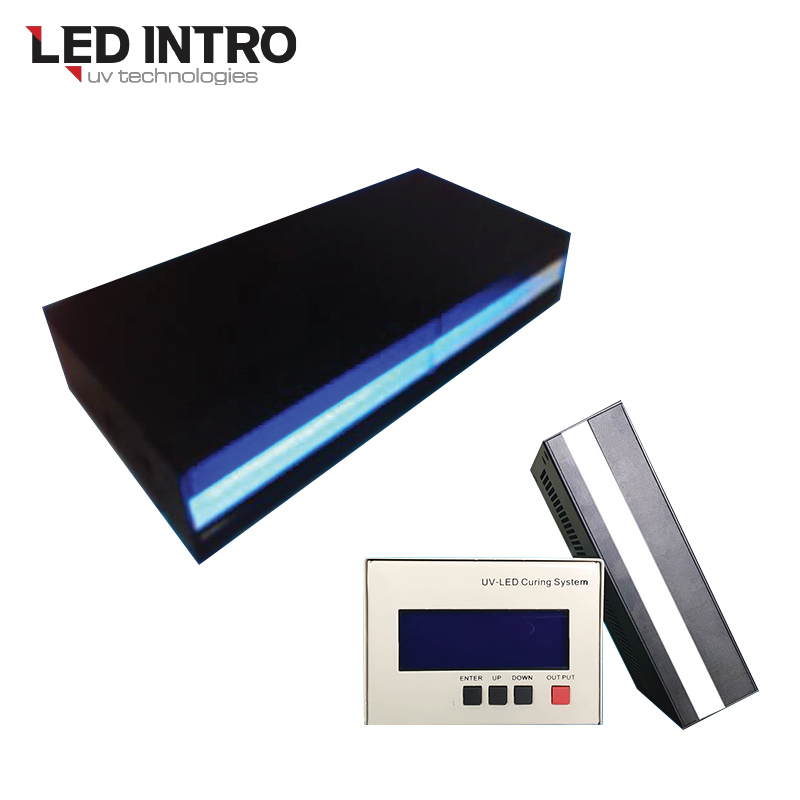

365nm UV LED Curing(L1508)

Product Features

Stable output, long service life, reducing operation and maintenance costs
Equipped with high-power imported UV LED to achieve high-energy linear irradiation output
Equipped with the latest digital control chip and PWM constant current drive to realize stepless adjustment of light power

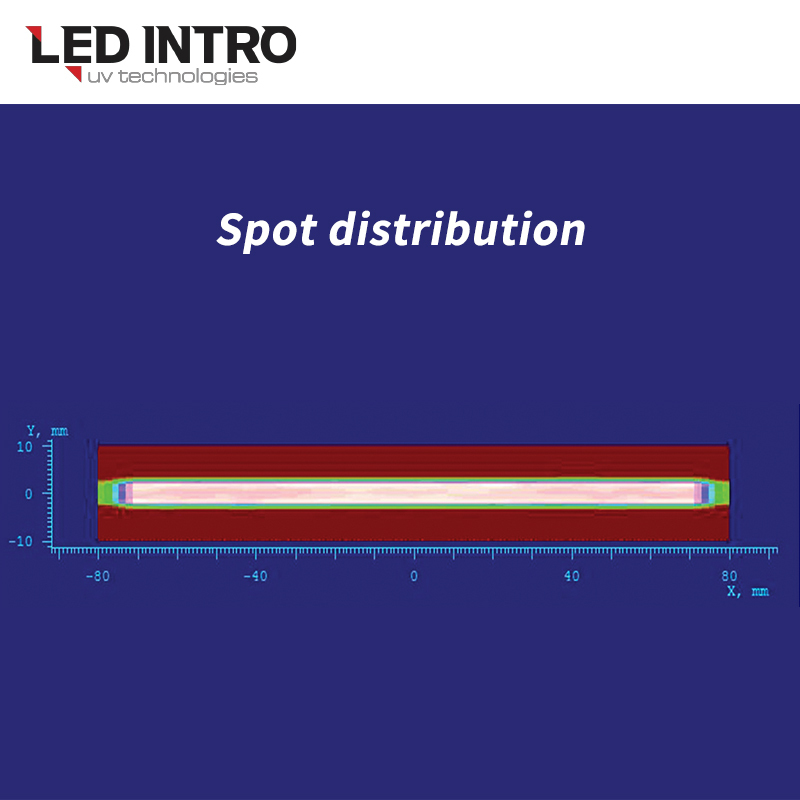

Equipped with optical-grade quartz condensing lens to achieve linear light spots of various specification widths
Equipped with a complete external I/O control port for perfect connection with automation equipment

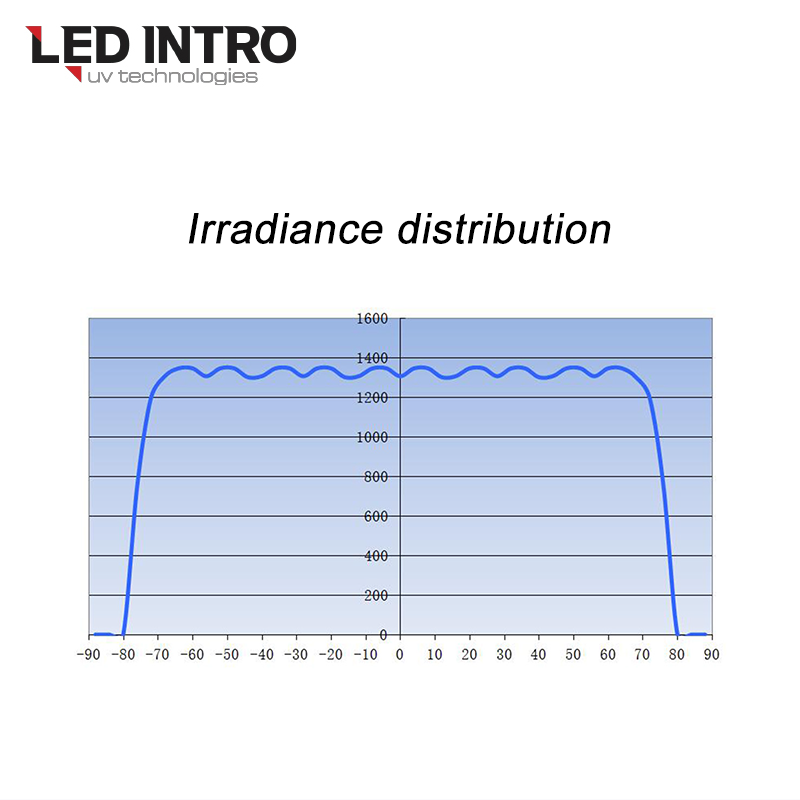

Adopting precise optical analysis technology, the light efficiency density is high, and the uniformity reaches over 90%

Parameter	Details
Model	LEDINTRO-L1508
Wavelength	365nm
Irradiation Area	150*8mm (adjustable as needed)
Irradiation Height	8 - 12mm
Maximum Light Power	Above 1200mW/cm²
Output Power Adjustment	10% ~ 100% adjustable
LED Lifespan	20000h
Dimension (LHW)	Adjustable as needed
Power Consumption	60W
Power Supply Voltage	AC100 ~ 240V
Cooling Method	Air Cooling
Control Method	Switch Control, Level Control, PLC Control

Mobile phone component assembly (camera lens, earpiece, shell, LCD module, touch screen coating, etc.)
Hard disk magnetic head assembly (gold wire fixing, bearing, coil, chip bonding, etc.)
Motor and component assembly (wire and coil fixing, coil terminal fixing, PTC/NTC component bonding, protective transformer core)

Warranty period	1. Module service life L70 > 10,000 hours; 2. One-year basic warranty provided; industrial-grade modules may be extended (requires signing a customized agreement).
Core Coverage Scope	1. Guaranteed zero ozone and zero mercury pollution; 2. During the warranty period, we cover issues such as reduced sterilization efficiency (below the 99.99% standard) due to material/manufacturing defects, UVC chip failure, or optical reflection material problems, providing free repair or replacement services.
Exemptions from Liability	This clause covers damage or loss caused by factors unrelated to the product itself, such as improper installation, improper use, or unauthorized disassembly of the equipment.
After-sales support	1. Provide multilingual operating manuals (including UVC module maintenance guides) with 48-hour remote video troubleshooting support; 2. Supply product inspection reports (e.g., Guangdong Provincial Microbial Analysis Test Report) to assist with compliance audits; 3. Offer technical integration support for bulk purchasers (e.g., water purifier manufacturers), guiding module compatibility and installation with end devices.
Safety and Quality Issues	If safety incidents or product discontinuation occur due to LEDINTRO's product quality issues, LEDINTRO shall bear full responsibility and assist in investigating the cause upon confirmation by both parties or a mutually agreed third-party institution.
	LEDINTRO reserves the right of final interpretation.
