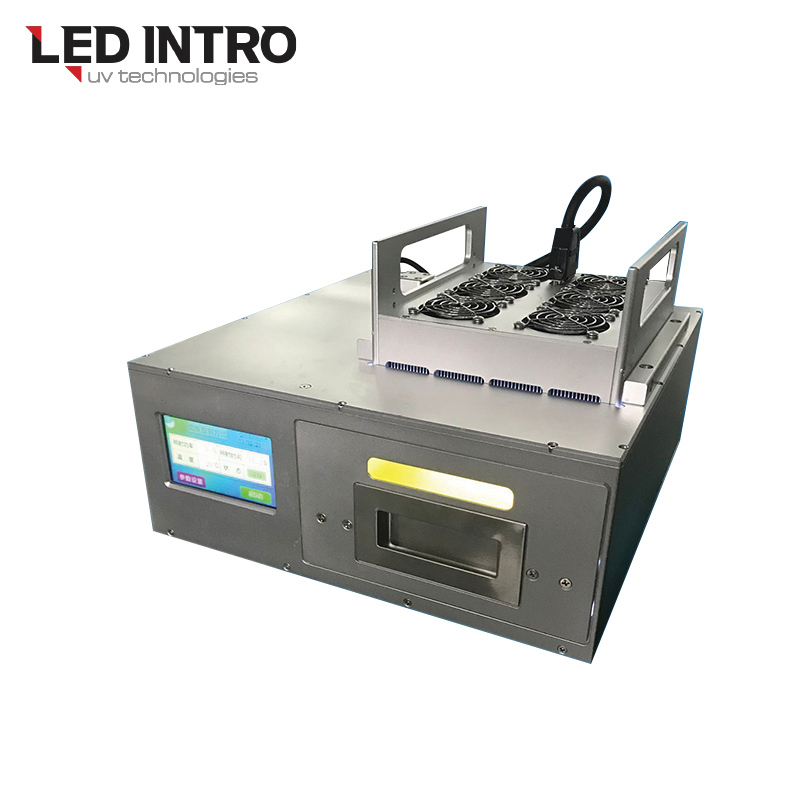

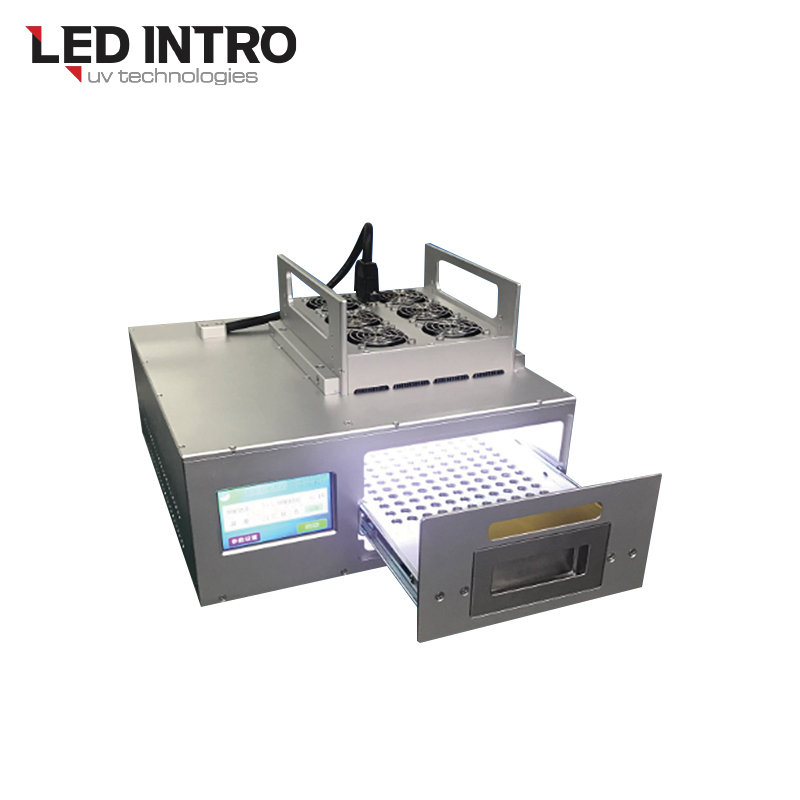

365nm UV LED Curing(G200200)

Product Features

Full touch control panel for easy operation, with real-time monitoring of temperature and working status
Equipped with high-power imported UV LED to achieve high-energy output

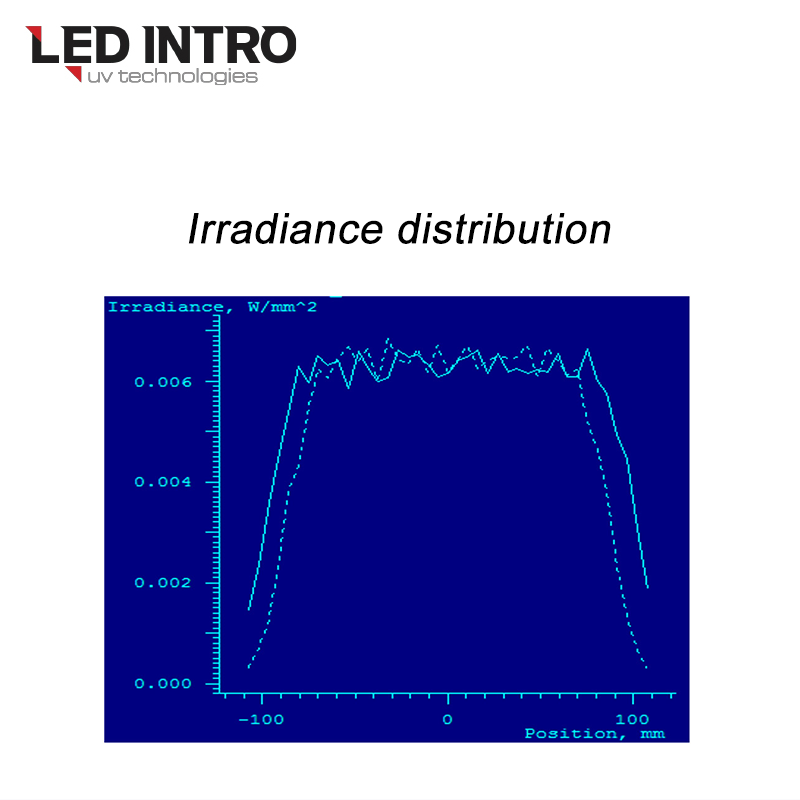

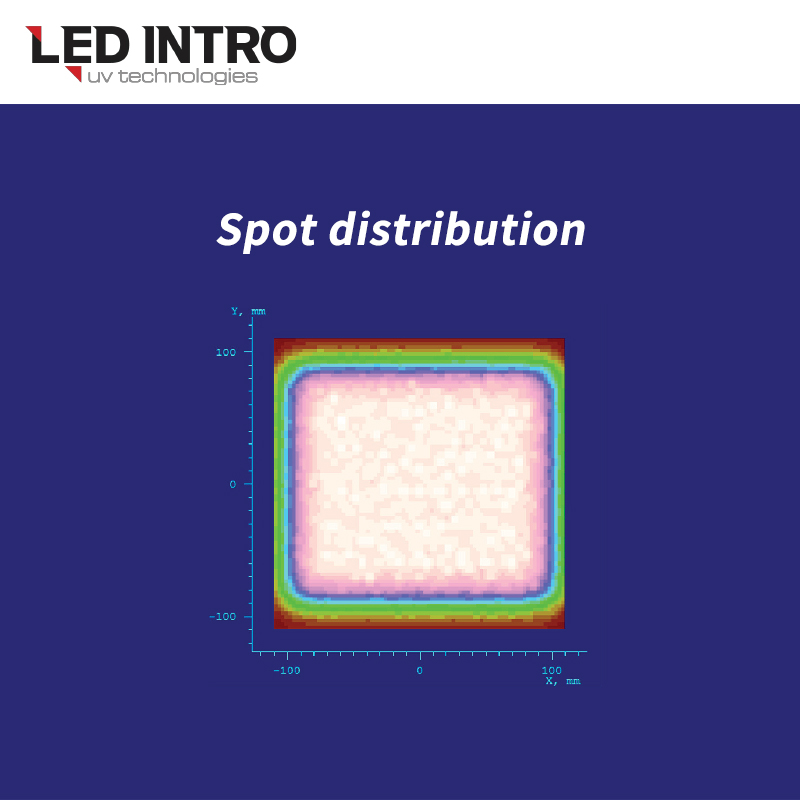

Uniform high-intensity irradiation can be achieved within the irradiation range
Equipped with the latest digital control chip and PWM constant current drive for stepless adjustment of light power
Liquid cooling or air cooling is adopted to keep the temperature within the appropriate working range and ensure constant light power output
Equipped with a complete external I/O control port for seamless connection with automation equipment

Parameter	Details
Model	LEDINTRO - G200200
Wavelength	365nm
Irradiation Area	200*200mm
Irradiation Height	3 - 15mm
Peak Light Power	Above 500mW/cm²
Output Power Adjustment	10% ~ 100% adjustable
LED Lifespan	20000h
Dimension (LHW)	366158360mm
Power Consumption	550W
Power Supply Voltage	AC100 ~ 240V
Cooling Method	Air Cooling
Control Method	Switch Control, Level Control, PLC Control

Electroacoustic industry: Receivers, micro motors, mobile phone chargers, etc.
Lens industry: Camera modules, camera lens modules, mobile phone lens modules, etc.
Optical industry, scientific research institutions, etc.

Warranty period	1. Module service life L70 > 10,000 hours; 2. One-year basic warranty provided; industrial-grade modules may be extended (requires signing a customized agreement).
Core Coverage Scope	1. Guaranteed zero ozone and zero mercury pollution; 2. During the warranty period, we cover issues such as reduced sterilization efficiency (below the 99.99% standard) due to material/manufacturing defects, UVC chip failure, or optical reflection material problems, providing free repair or replacement services.
Exemptions from Liability	This clause covers damage or loss caused by factors unrelated to the product itself, such as improper installation, improper use, or unauthorized disassembly of the equipment.
After-sales support	1. Provide multilingual operating manuals (including UVC module maintenance guides) with 48-hour remote video troubleshooting support; 2. Supply product inspection reports (e.g., Guangdong Provincial Microbial Analysis Test Report) to assist with compliance audits; 3. Offer technical integration support for bulk purchasers (e.g., water purifier manufacturers), guiding module compatibility and installation with end devices.
Safety and Quality Issues	If safety incidents or product discontinuation occur due to LEDINTRO's product quality issues, LEDINTRO shall bear full responsibility and assist in investigating the cause upon confirmation by both parties or a mutually agreed third-party institution.
	LEDINTRO reserves the right of final interpretation.
