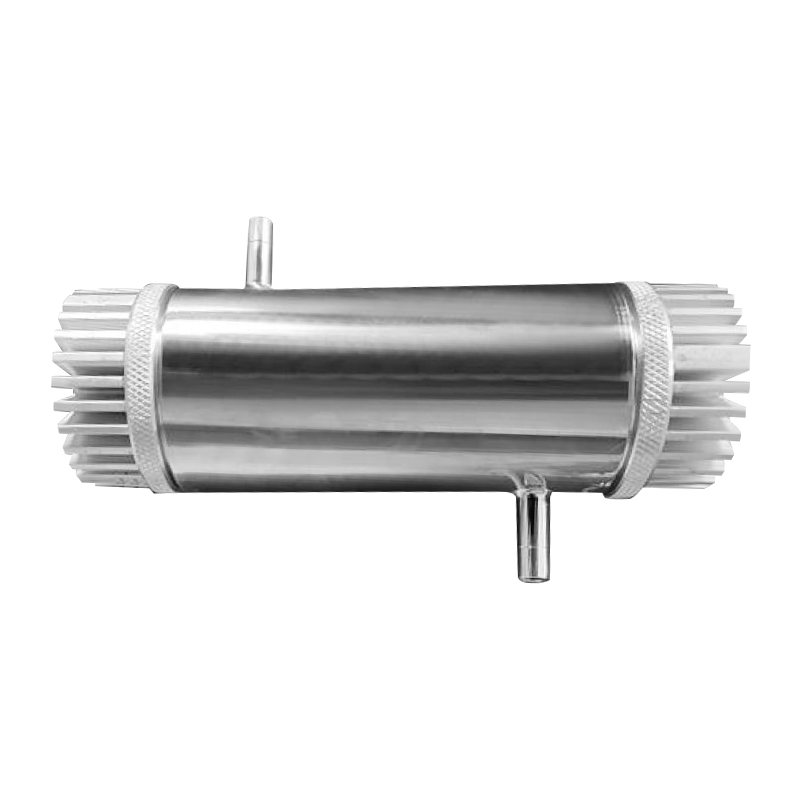

BU-B-D60-020

Features

High-end UVC, super UV. Escherichia coli and Staphylococcus aureus, kill rate of 99.99%.
Streamline, widely used, water pipeline sterilization
UVC-LED sterilization lamp lights on without waiting
Low-pressure drive to isolate the risk of electric shock.
Linkage with the external water flow control switch, the pulse working mode of "water flow on-LED sterilization on, water flow off-LED sterilization off" can be realized

Item	Details
product model	BU-B-D60-020

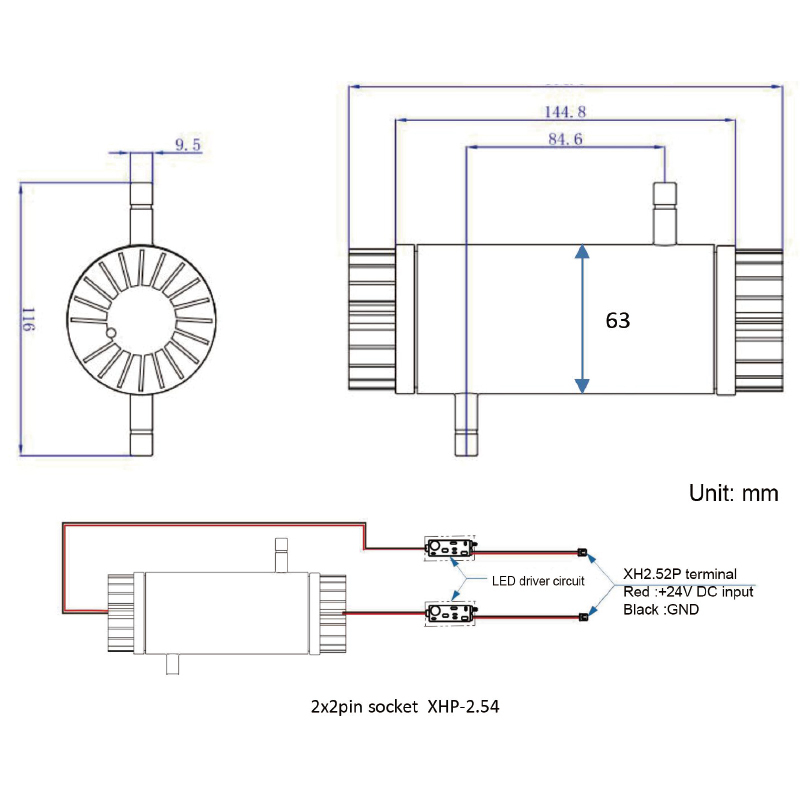

product size	Φ63165185MM
input voltage	DC 24V
Power	18-25W
Maximum matching water flow velocity	6-12L/min
sterilizing time	Instant start
parts	/
levels of protection	/

Item	Details
UVC technology	Co-crystal welding
material quality	Semiconductor diode, purify 99.99% quartz glass

Warranty period	1. Module service life L70 > 10,000 hours; 2. One-year basic warranty provided; industrial-grade modules may be extended (requires signing a customized agreement).
Core Coverage Scope	1. Guaranteed zero ozone and zero mercury pollution; 2. During the warranty period, we cover issues such as reduced sterilization efficiency (below the 99.99% standard) due to material/manufacturing defects, UVC chip failure, or optical reflection material problems, providing free repair or replacement services.
Exemptions from Liability	This clause covers damage or loss caused by factors unrelated to the product itself, such as improper installation, improper use, or unauthorized disassembly of the equipment.
After-sales support	1. Provide multilingual operating manuals (including UVC module maintenance guides) with 48-hour remote video troubleshooting support; 2. Supply product inspection reports (e.g., Guangdong Provincial Microbial Analysis Test Report) to assist with compliance audits; 3. Offer technical integration support for bulk purchasers (e.g., water purifier manufacturers), guiding module compatibility and installation with end devices.
Safety and Quality Issues	If safety incidents or product discontinuation occur due to LEDINTRO's product quality issues, LEDINTRO shall bear full responsibility and assist in investigating the cause upon confirmation by both parties or a mutually agreed third-party institution.
	LEDINTRO reserves the right of final interpretation.
