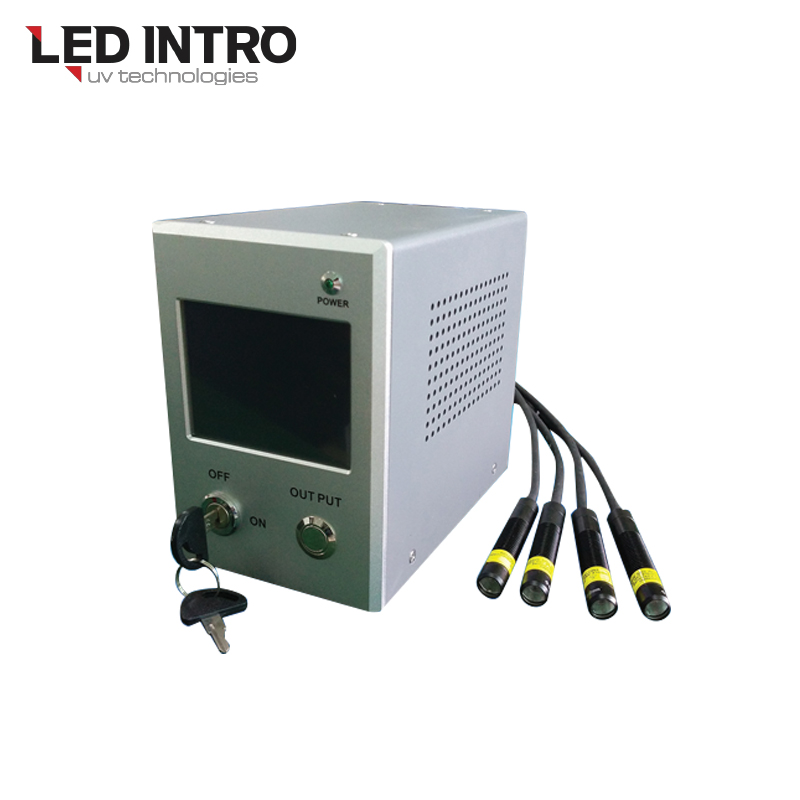

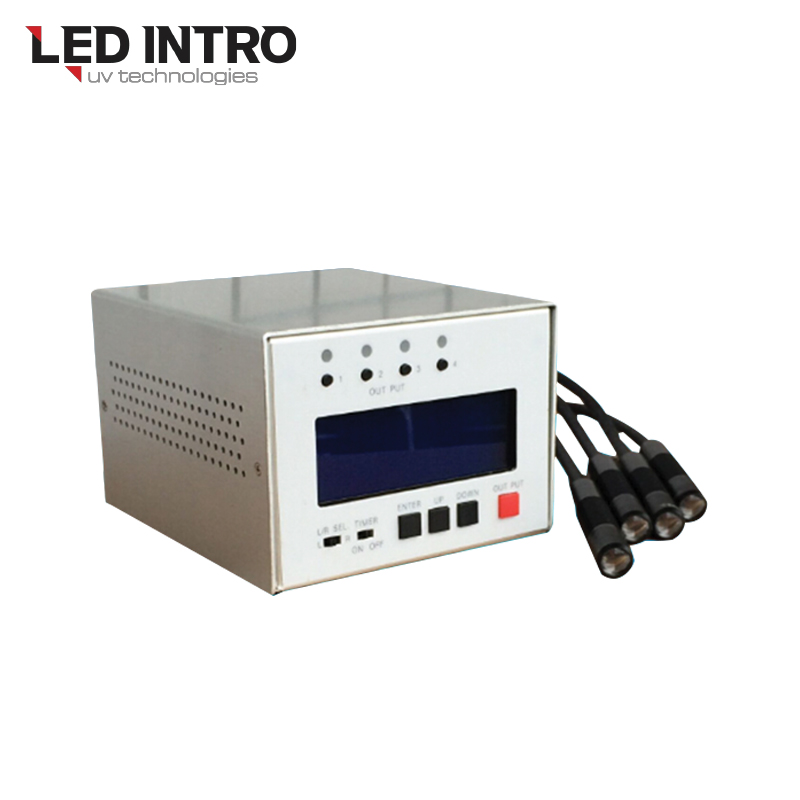

365/395/405nm UV LED Curing(C40/D40)

Product Features

Single-wavelength ultraviolet output with no harmful thermal reaction
Low power consumption for energy saving; flexible layout that saves equipment space
Stable output and long service life, reducing operation and maintenance costs
Equipped with high-power imported UV LEDs from Japan to achieve high-energy irradiation output
Equipped with the latest digital control chip and PWM constant current drive for stepless adjustment of light power
Supports independent control output for each channel as well as simultaneous control output for all channels
Equipped with a complete external I/O control port for seamless connection with automation equipment

Parameter	Details
Model	Point Light Source: LEDINTRO-D40 / LEDINTRO-C40
Wavelength	Optional: 365nm, 395nm, 405nm
Light Spot Size (mm)	φ3, φ4, φ6, φ8, φ10, φ12
Peak Irradiation Power (mW/cm²)	9000 (φ3), 7000 (φ4), 3800 (φ6), 2500 (φ8), 1500 (φ10), 1000 (φ12)
Output Channels	1CH ~ 12CH
Power Adjustment	10% ~ 100% adjustable
LED Lifespan	20000h
Dimension (LHW)	12011080mm
Total Power Consumption	40W
Power Supply Specification	AC100 ~ 240V
Cooling Method	Air Cooling / Self-Cooling
Control Method	Switch Control, Level Control, PLC Control

Hard disk magnetic head assembly (gold wire fixing, bearing, coil, chip bonding, etc.)
Motor and component assembly (wire and coil fixing, coil terminal fixing, PTC/NTC component bonding, protective transformer core)
DVD/digital camera (lens and lens bonding, circuit board reinforcement)
Sensor production (gas sensor, photoelectric sensor, optical fiber sensor, photoelectric encoder, etc.)
Mobile phone component assembly (camera lens, earpiece, microphone, shell, LCD module, touch screen coating, etc.)
TFT-LCD liquid crystal panel nozzle sealing, bonding and mounting of TFT-LCD liquid crystal panel FPC
UV curing application for ST-LED in the optical industry
Optical component assembly (lens group, prism, optical engine assembly, COD, COMS)
LED UV curing application in the optical communication industry
LED UV glue curing application for medical devices

Warranty period	1. Module service life L70 > 10,000 hours; 2. One-year basic warranty provided; industrial-grade modules may be extended (requires signing a customized agreement).
Core Coverage Scope	1. Guaranteed zero ozone and zero mercury pollution; 2. During the warranty period, we cover issues such as reduced sterilization efficiency (below the 99.99% standard) due to material/manufacturing defects, UVC chip failure, or optical reflection material problems, providing free repair or replacement services.
Exemptions from Liability	This clause covers damage or loss caused by factors unrelated to the product itself, such as improper installation, improper use, or unauthorized disassembly of the equipment.
After-sales support	1. Provide multilingual operating manuals (including UVC module maintenance guides) with 48-hour remote video troubleshooting support; 2. Supply product inspection reports (e.g., Guangdong Provincial Microbial Analysis Test Report) to assist with compliance audits; 3. Offer technical integration support for bulk purchasers (e.g., water purifier manufacturers), guiding module compatibility and installation with end devices.
Safety and Quality Issues	If safety incidents or product discontinuation occur due to LEDINTRO's product quality issues, LEDINTRO shall bear full responsibility and assist in investigating the cause upon confirmation by both parties or a mutually agreed third-party institution.
	LEDINTRO reserves the right of final interpretation.
