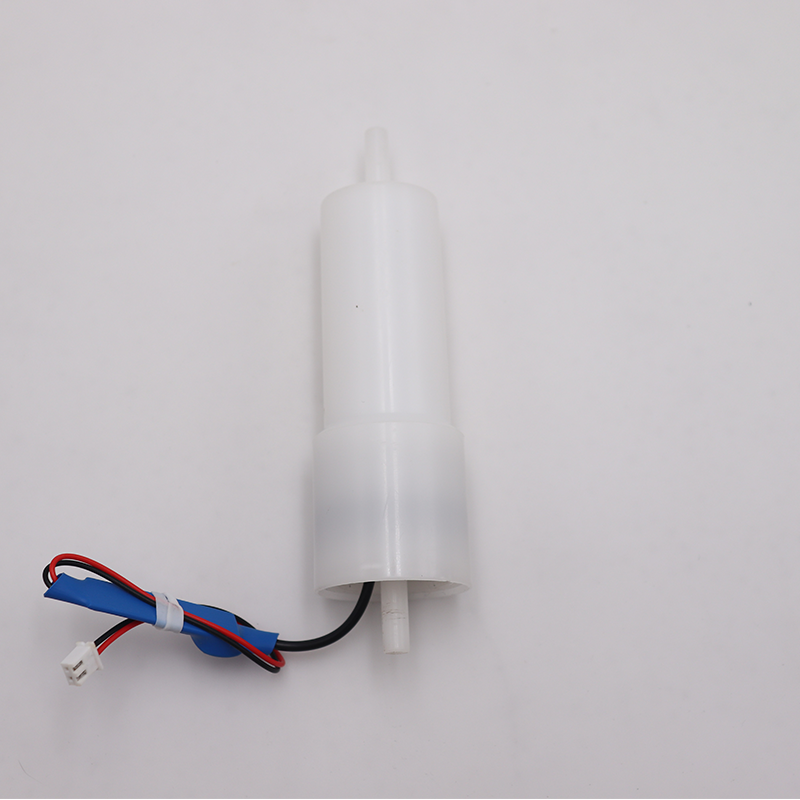

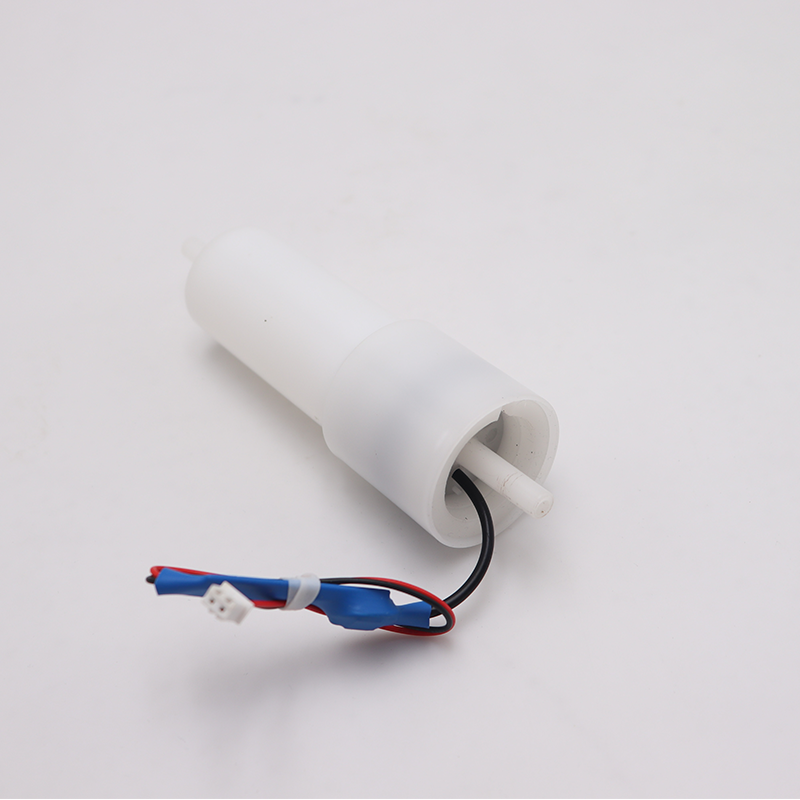

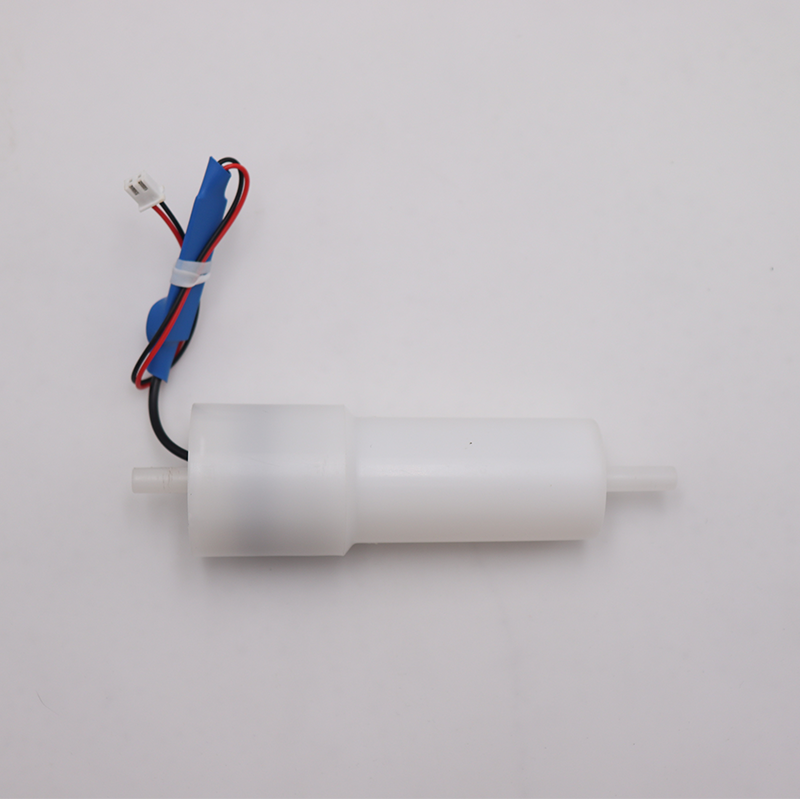

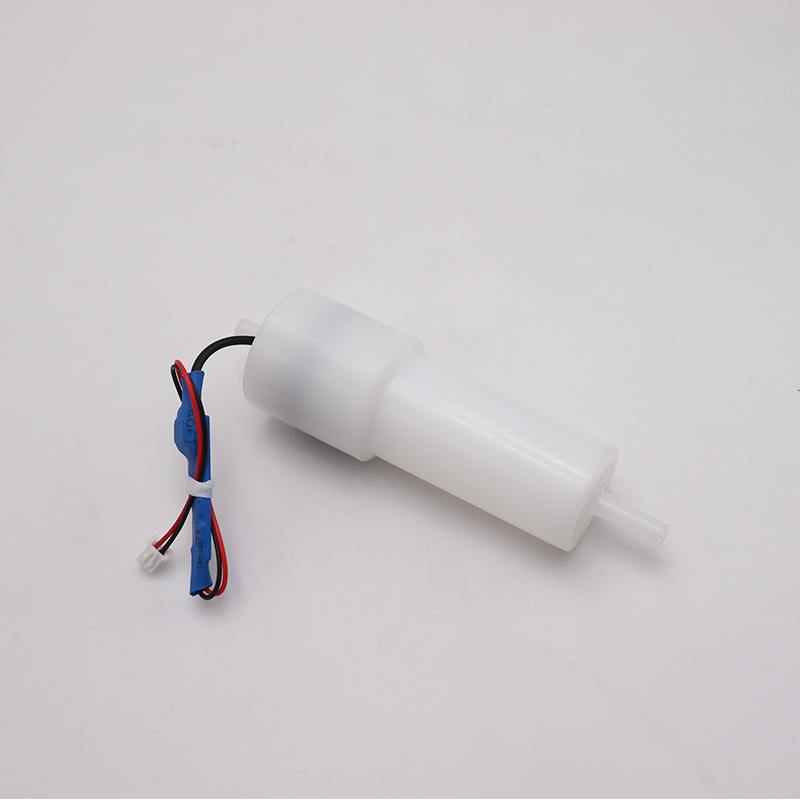

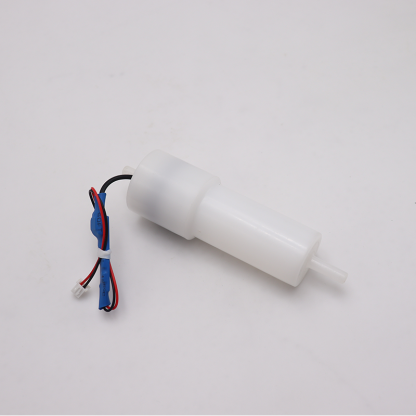

BU-B-2PRO-029
Features:
- Using UV-LEDs instead of mercury lamps is environmentally friendly, pollution-free, energy-efficient, and safer.
- Using imported UVC chips, the UVC wavelength range of 260-280nm delivers enhanced sterilization effectiveness. UVC energy is more concentrated, resulting in a higher sterilization rate.
- This product is widely used in drinking water sterilization applications, including water purifiers, household and commercial water dispensers, coffee machines, brewers, and laboratory water dispensers.
- Product quality has passed sterilization inspections, water hammer tests, burst tests, and static pressure tests conducted by authoritative organizations.
- E. coli sterilization rate (log) 99.99%, natural bacteria sterilization rate (log) 99% (2000 CFU/mL natural bacteria).
| Item | Specification |
|---|---|
| Main Dimensions | Φ17.5*L105mm (According to the actual product) |
| Rated Voltage | DC24V |
| Radiant Optical Power | Above 45mW |
| Wavelength Peak (λp) | 265 - 275nm, Measurement Accuracy ±5nm |
| Designed Flow Rate | 1 L/min |
| Sterilization Rate | 99.9% (Escherichia coli group); 99% (2000CFU/mL Natural Mixed Bacteria) |
| Working Mode | Water Cooling |
| Working Junction Temperature | Tj < 60°C |
| Hydrostatic Pressure | 12kg |
| Internal Protection Grade | IPX7 (Not Waterproof Externally) |
| Remarks | 1. It is recommended that the water be filtered when the module sterilizes. |
Other:
| Module Series | Flow Rate (L/min) | Quick Connector | Sterilization Rate | Input Power (W) | Input Voltage (V) |
|---|---|---|---|---|---|
| B1 | Within 1 | Within 1 1/4" Quick Connector |
≥99% | 1.5 | DC24V |
| B2 | Within 1 | 1/4" Straight-through Connector | ≥99% | 1.5 | DC24V |

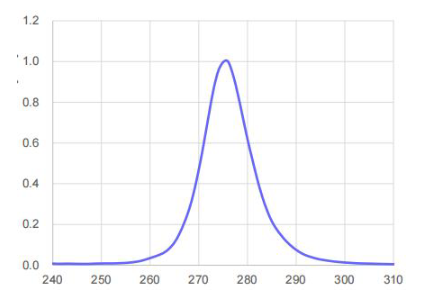

Spectral characteristic curve (Ta = 25°C):

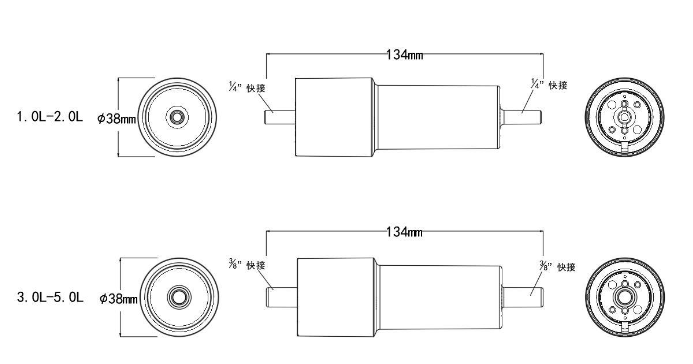

Size:

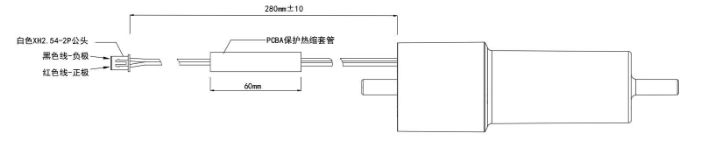

① This module has a terminal model of XH2.54-2P, and the terminal color is white. Terminals and cables can be customized upon request.
② This module uses a DC12/24V power supply. This must be confirmed with our company before delivery.
③ After installation, this module has an anti-static rating of 4kV.
④ The installation position of this module can be adjusted based on actual needs.
