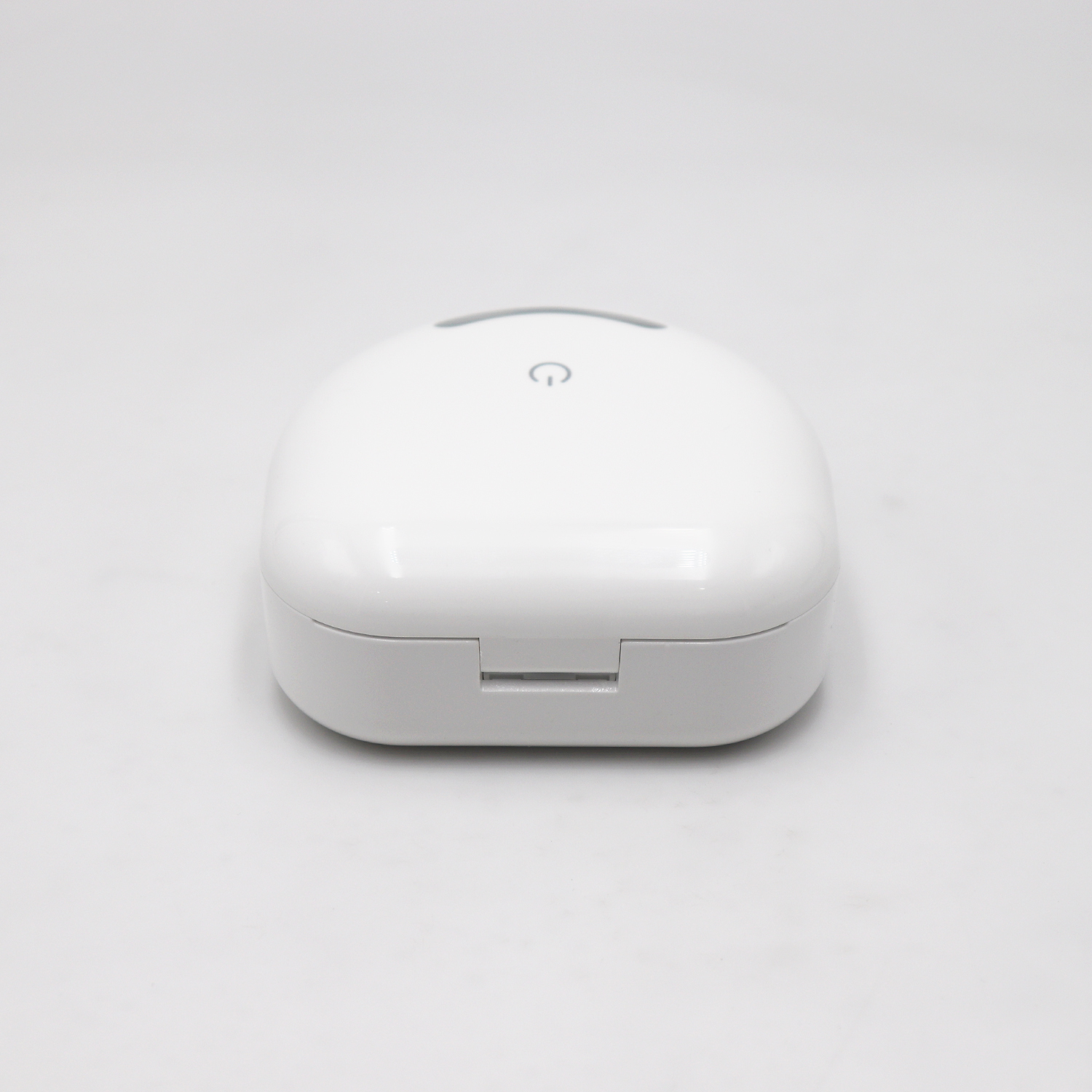

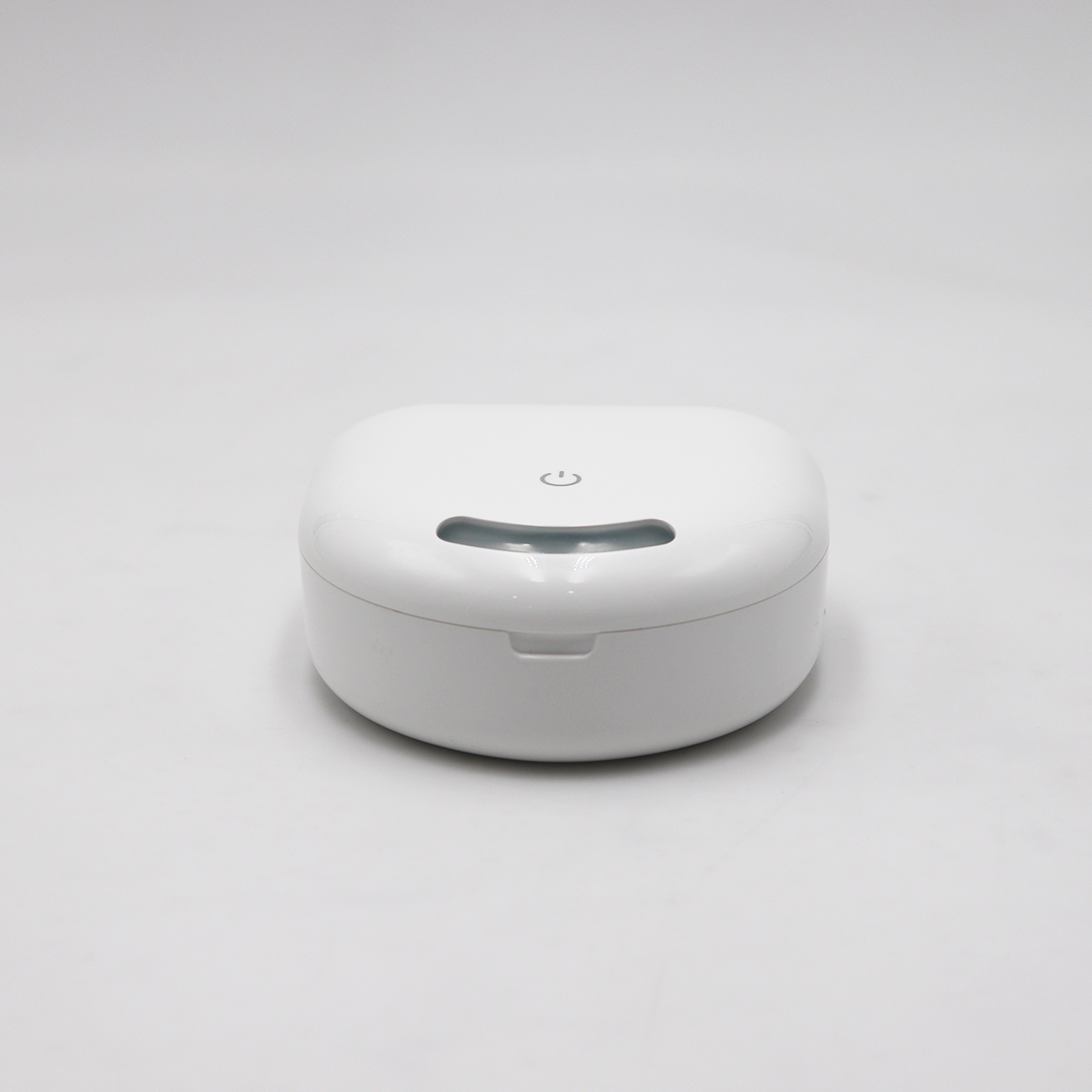

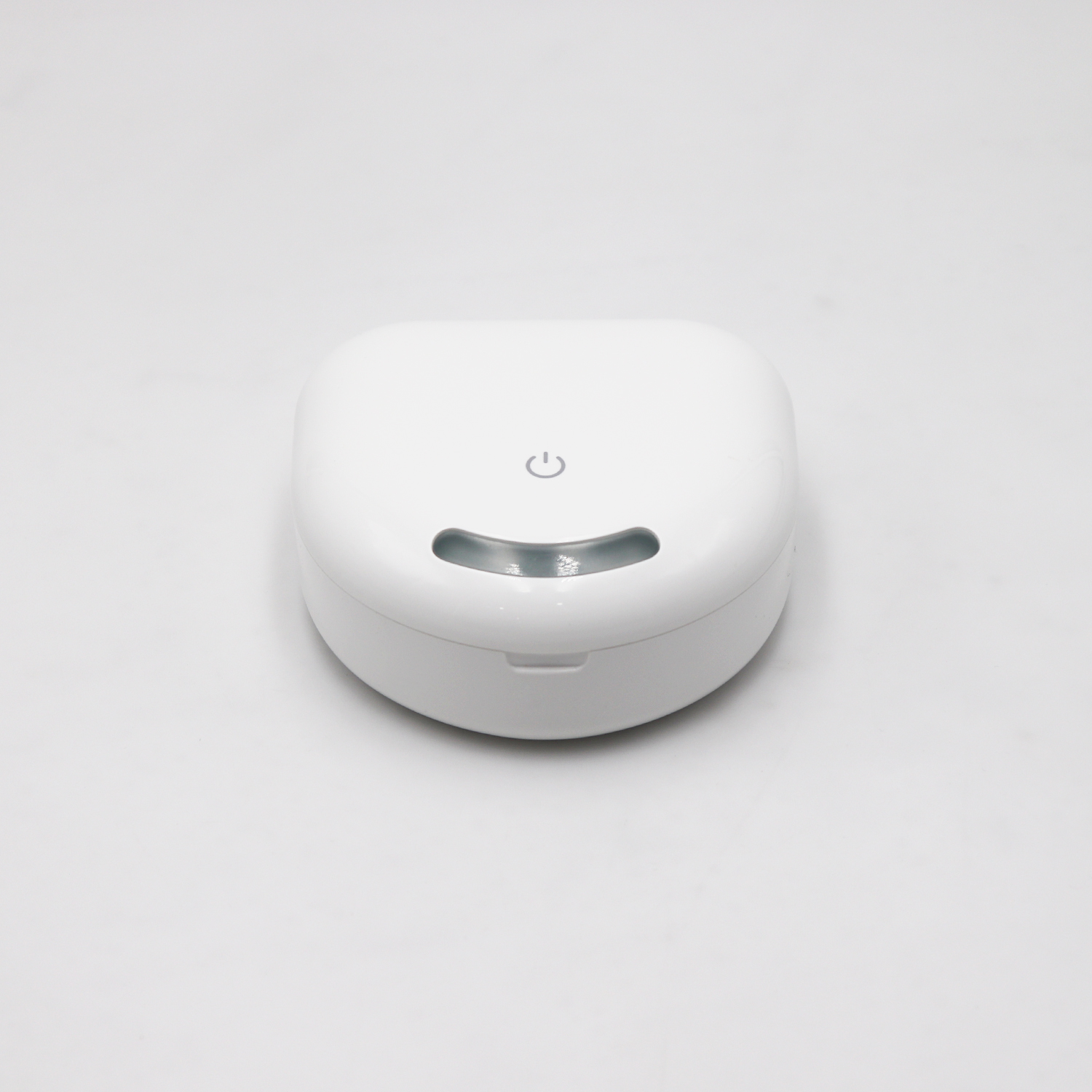

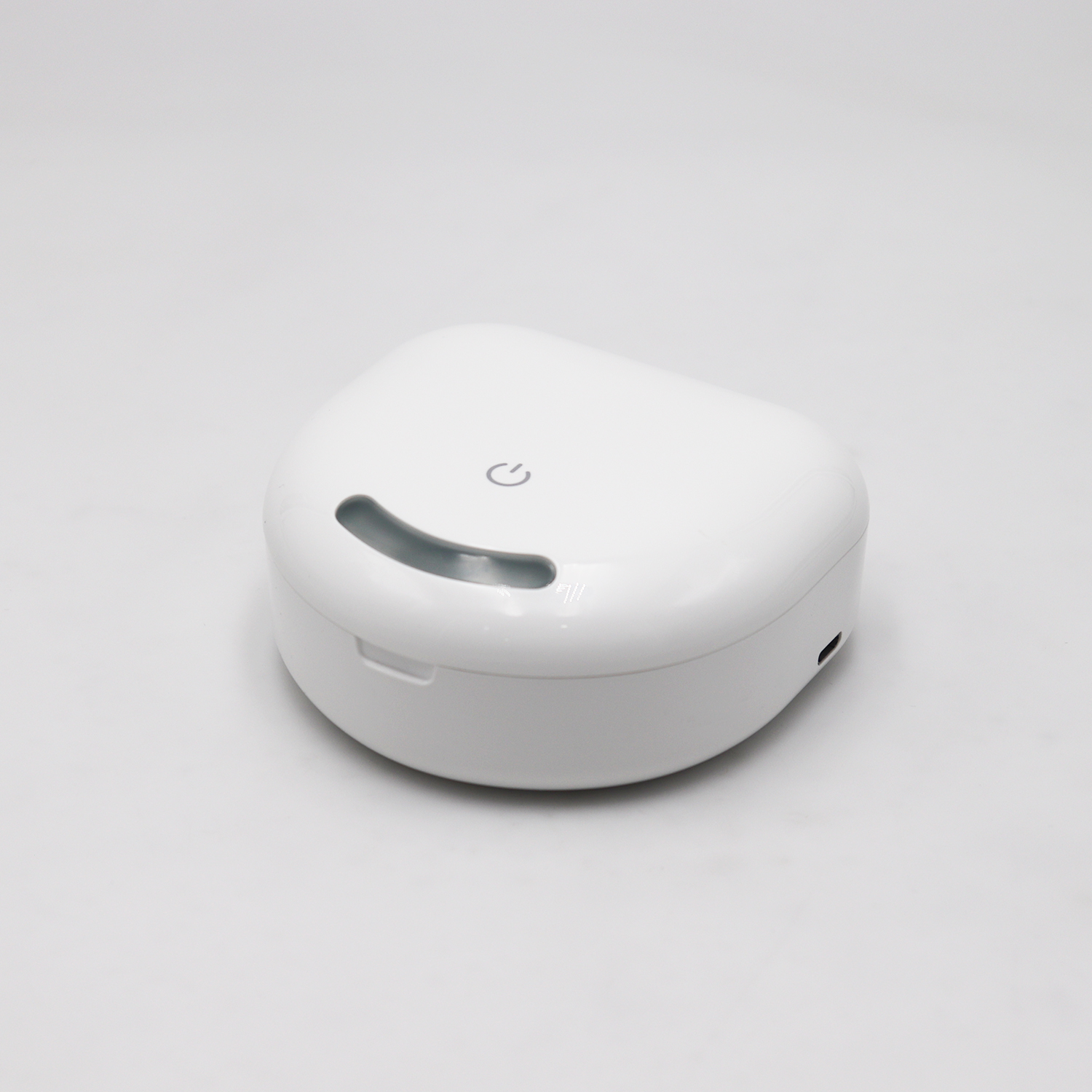

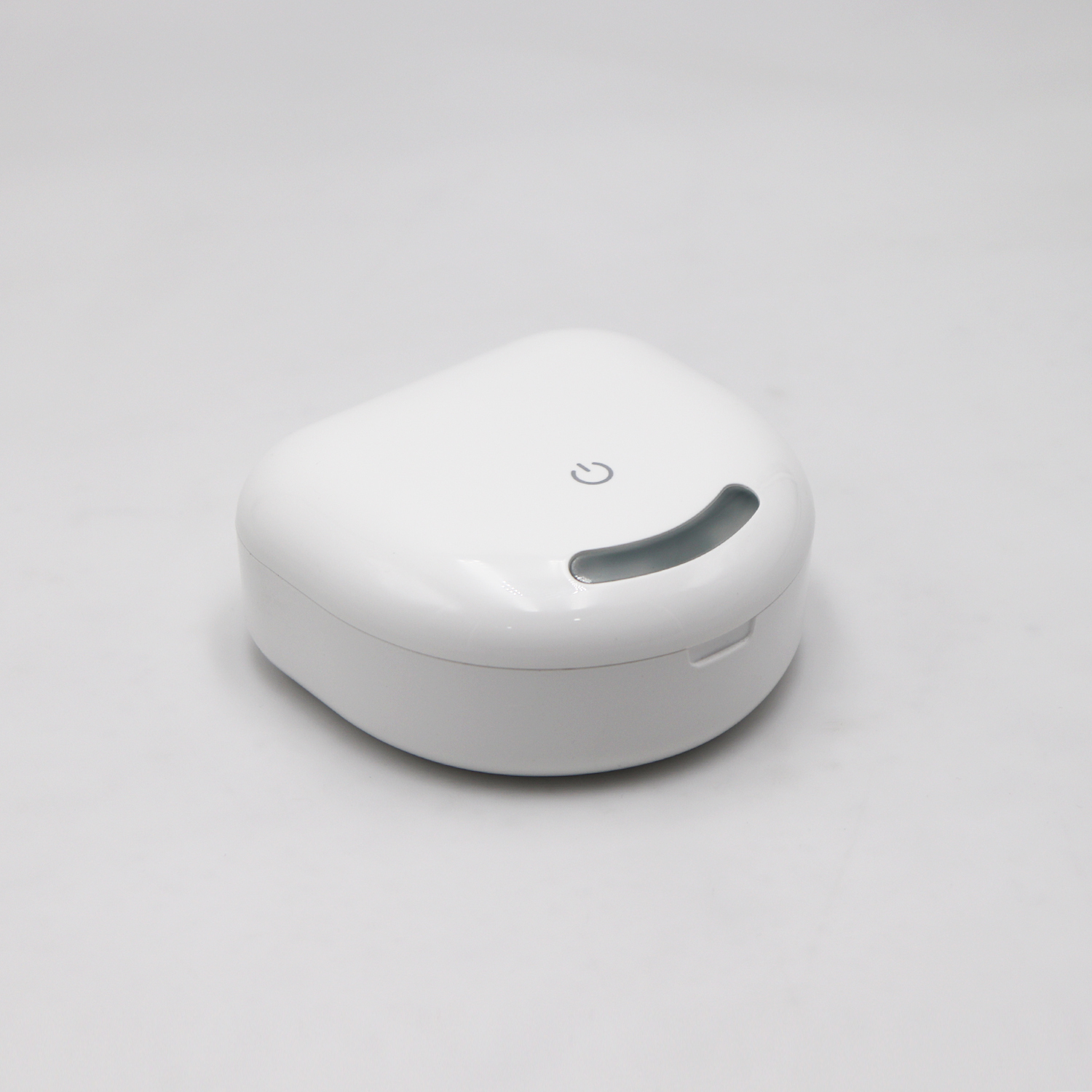

Braces sterilization box
Features:
- Compact and portable, it offers over 60 uses on a single charge.
- Three imported UVC and UVA light sources provide powerful sterilization, killing 99.9% of oral bacteria.
- Stylish and elegant design thanks to its integrated molding.
- Extremely large heat dissipation area ensures effective heat dissipation and a long UVC lifespan.
- UV-coated finish ensures excellent wear and corrosion resistance, resulting in a premium appearance.

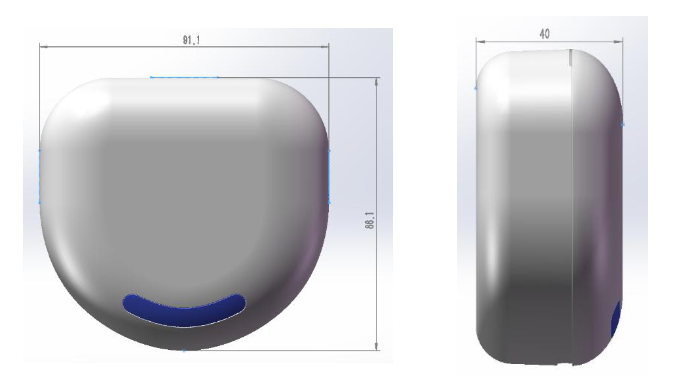

Size:
Technical parameter:
| Item | Specification |
|---|---|
| Product model | OL-11-2 |
| Product size | 9186.140mm |
| Input voltage | DC 5V |
| Input current | ≤0.6A |
| Standby current | < 500μA |
| Number of lamp beads | UVC + UVA LED 3PCS |
| UV wavelength | 270~280nm |
| Battery capacity | 600mAh |
| Irradiance | ≥150μW/cm² (Directly below the UVC LED 1cm) |
| Sterilizing time | 150 s |
| Charging method | Micro USB |
| Safety protection | Open the sterilization box cover during the sterilization process, and the UVC+UVA beads will automatically extinguish |
| Parts | USB cable x 1 pcs |
| Number of use | It can be used 60 times once fully charged |
| Charging interval | ≤2.5H |
| Levels of protection | / |
| Net weight of the product | 0.126KGS |
| Product certification | / |
Material process parameters:
| Item | Specification |
|---|---|
| Technology | Co-crystal welding / high-pressure injection molding |
| Material quality | Food grade ABS, Semiconductor diodes, lithium battery |
Enviromental parameter:
| Item | Specification |
|---|---|
| End-use temperature | -10~40℃ |
| Operating humidity | 10%~90% |
| Storage temperature | -40~70℃ |
| Store humidity | 10%~90% |
Custom content:
| Item | Specification |
|---|---|
| Case color | White / Black |
| Function | / |
Direction for use:

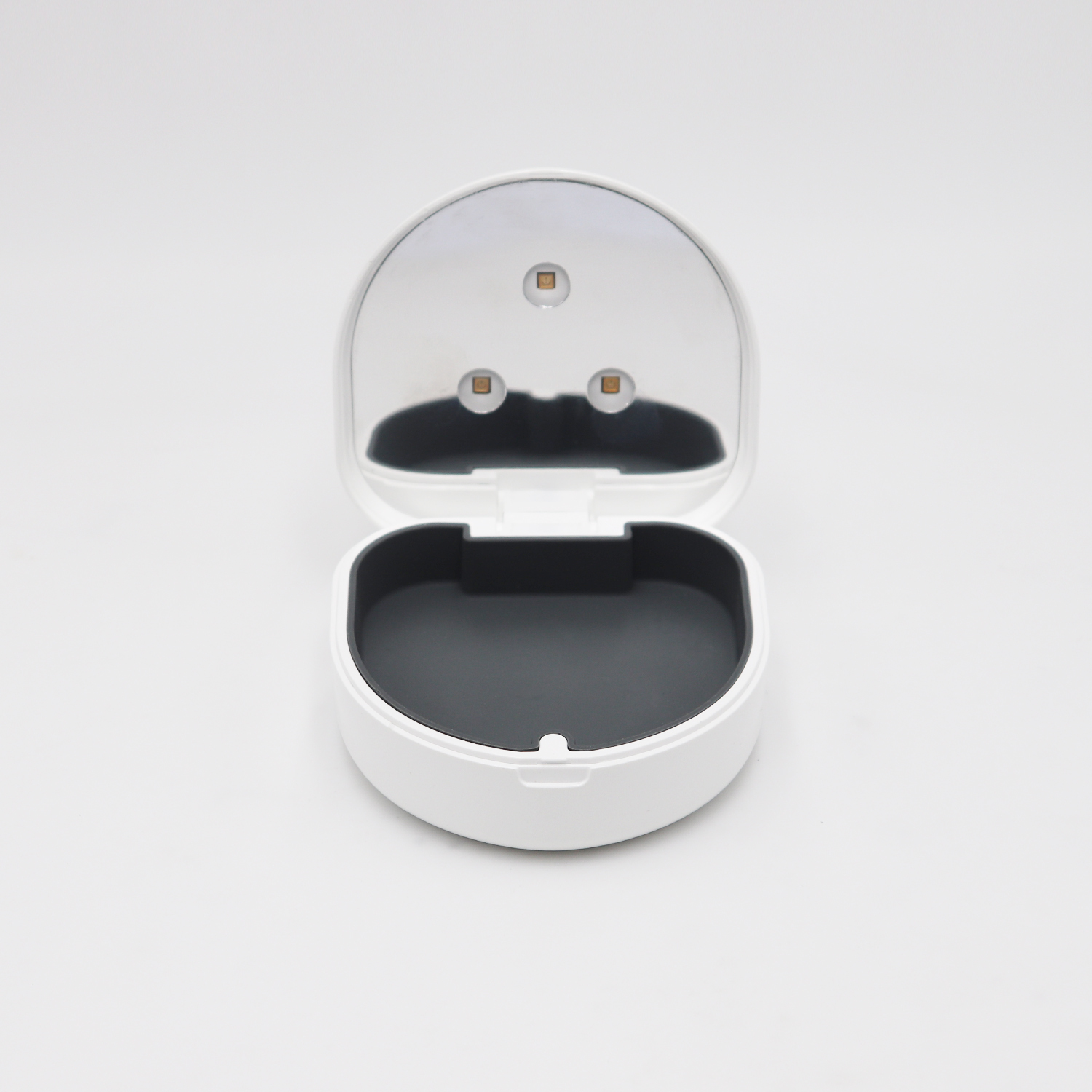

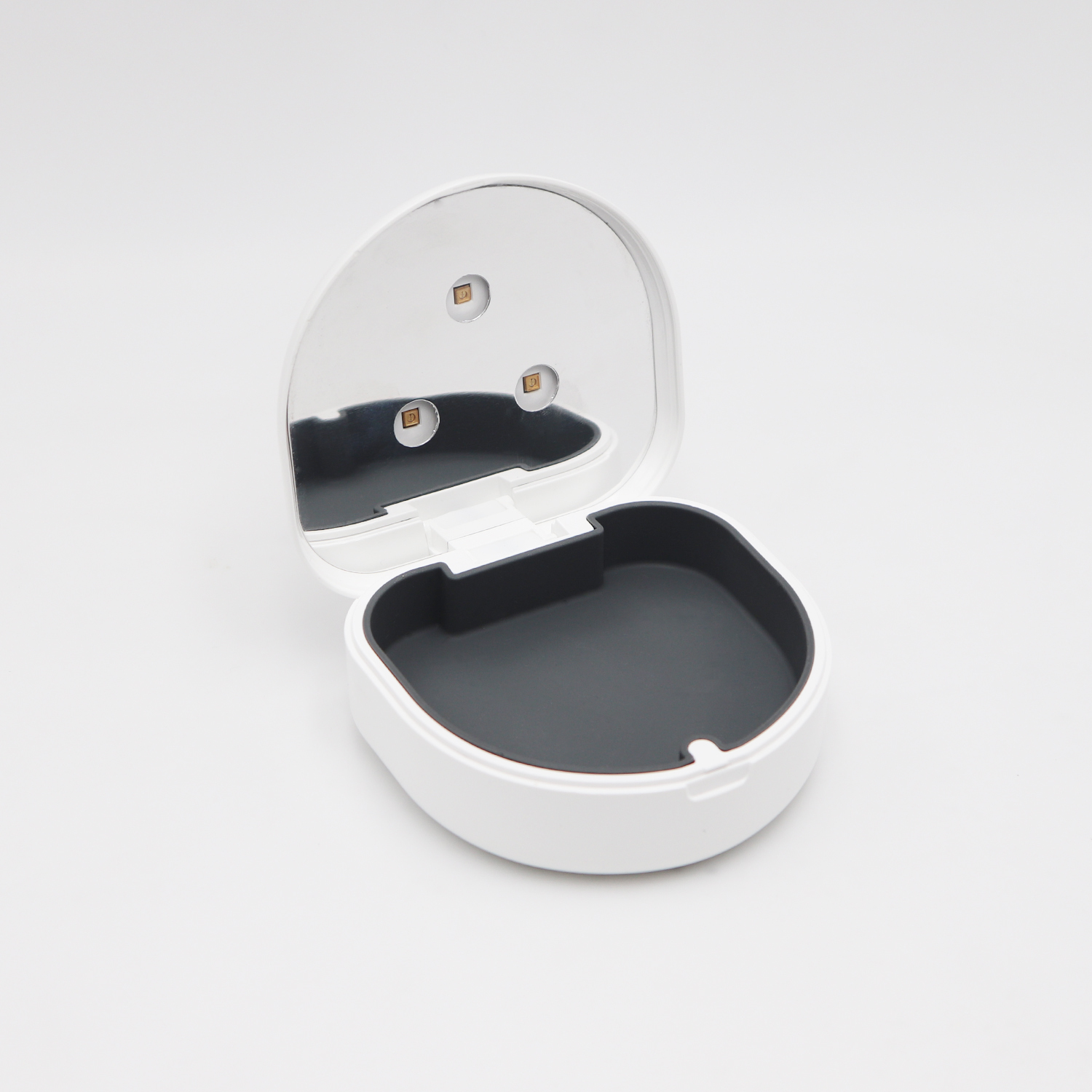

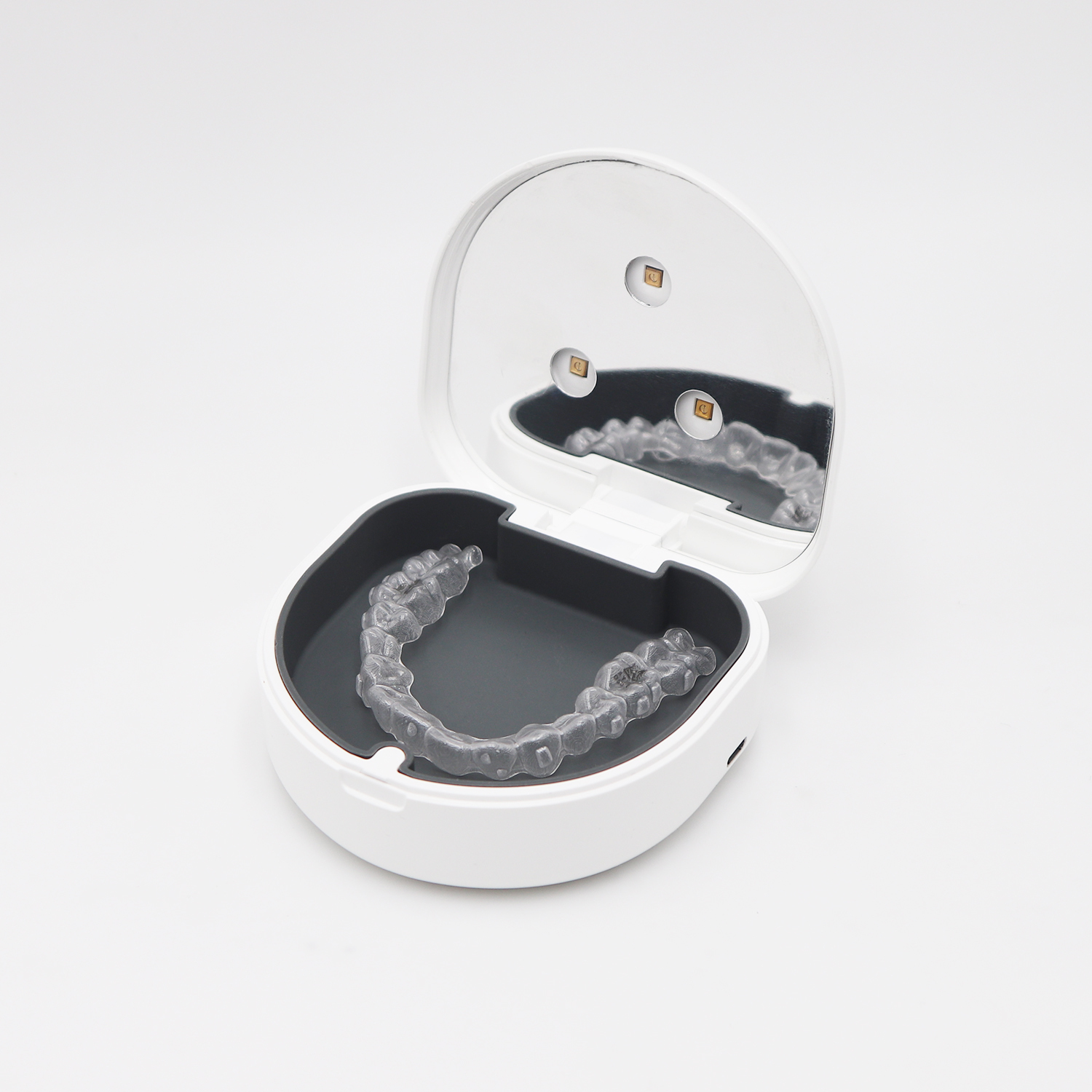

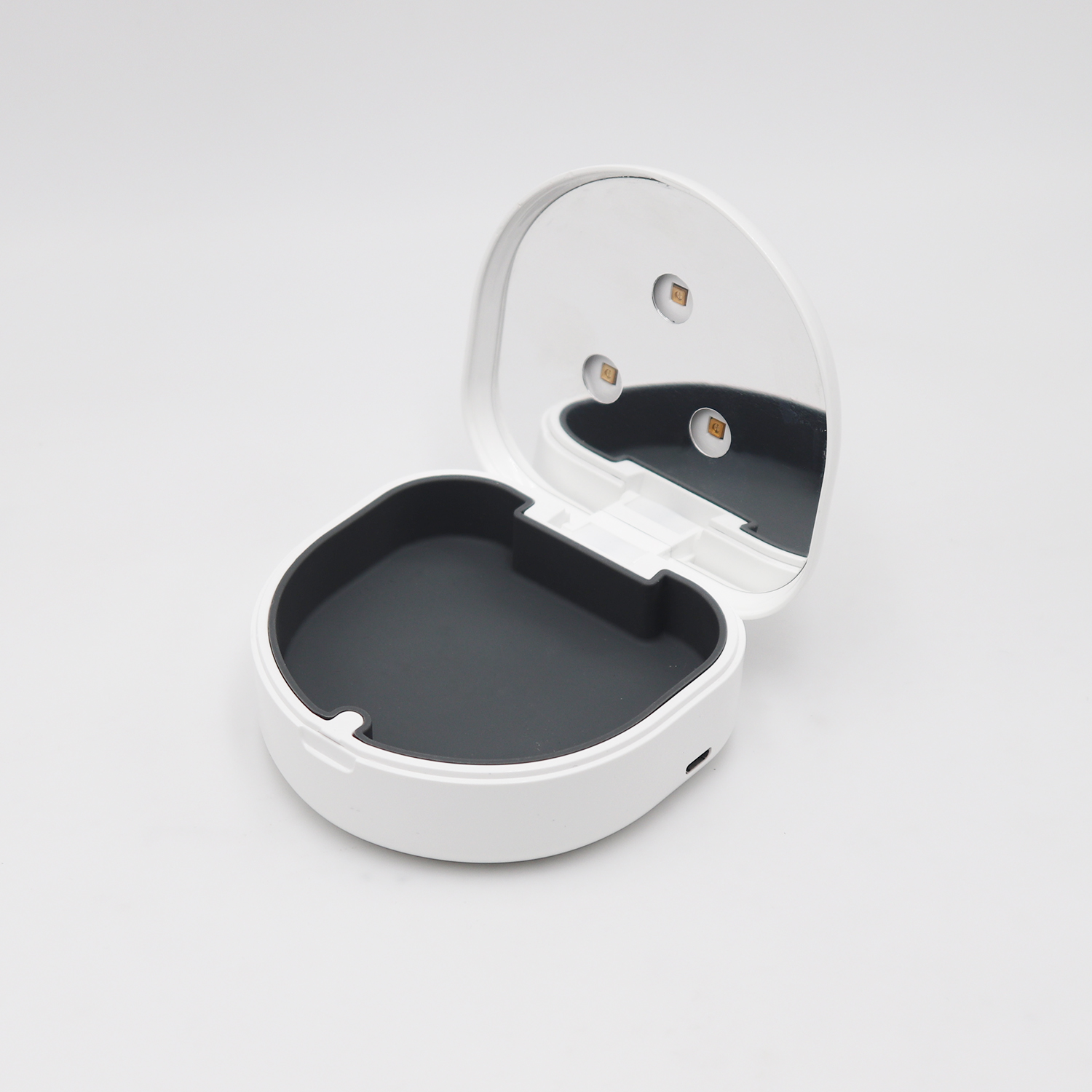

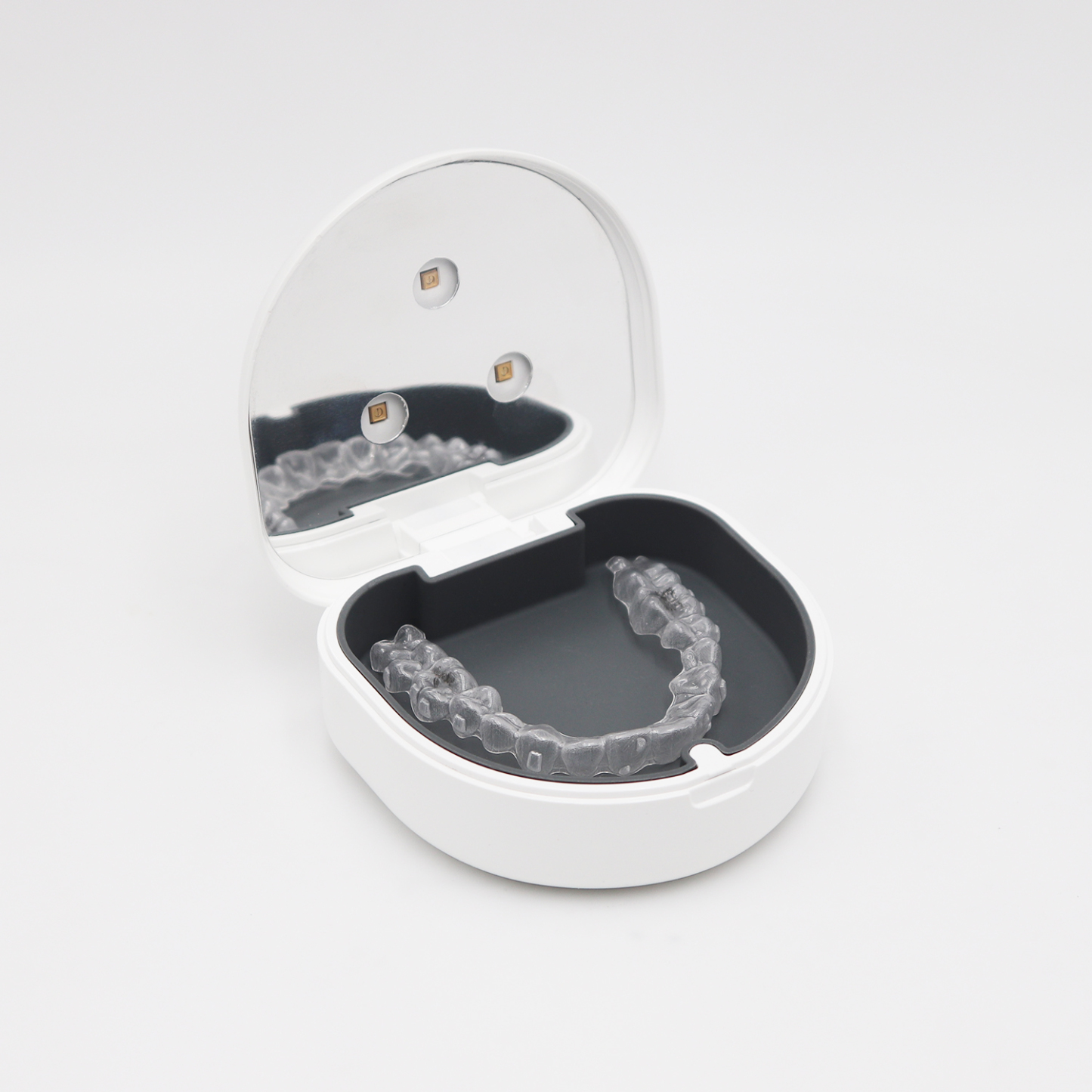

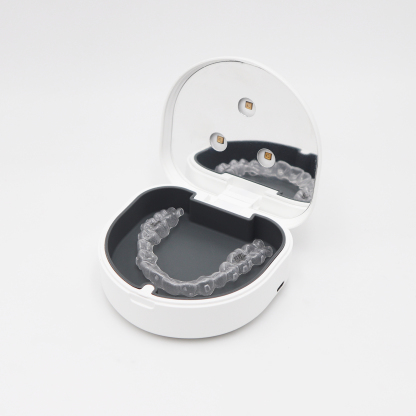

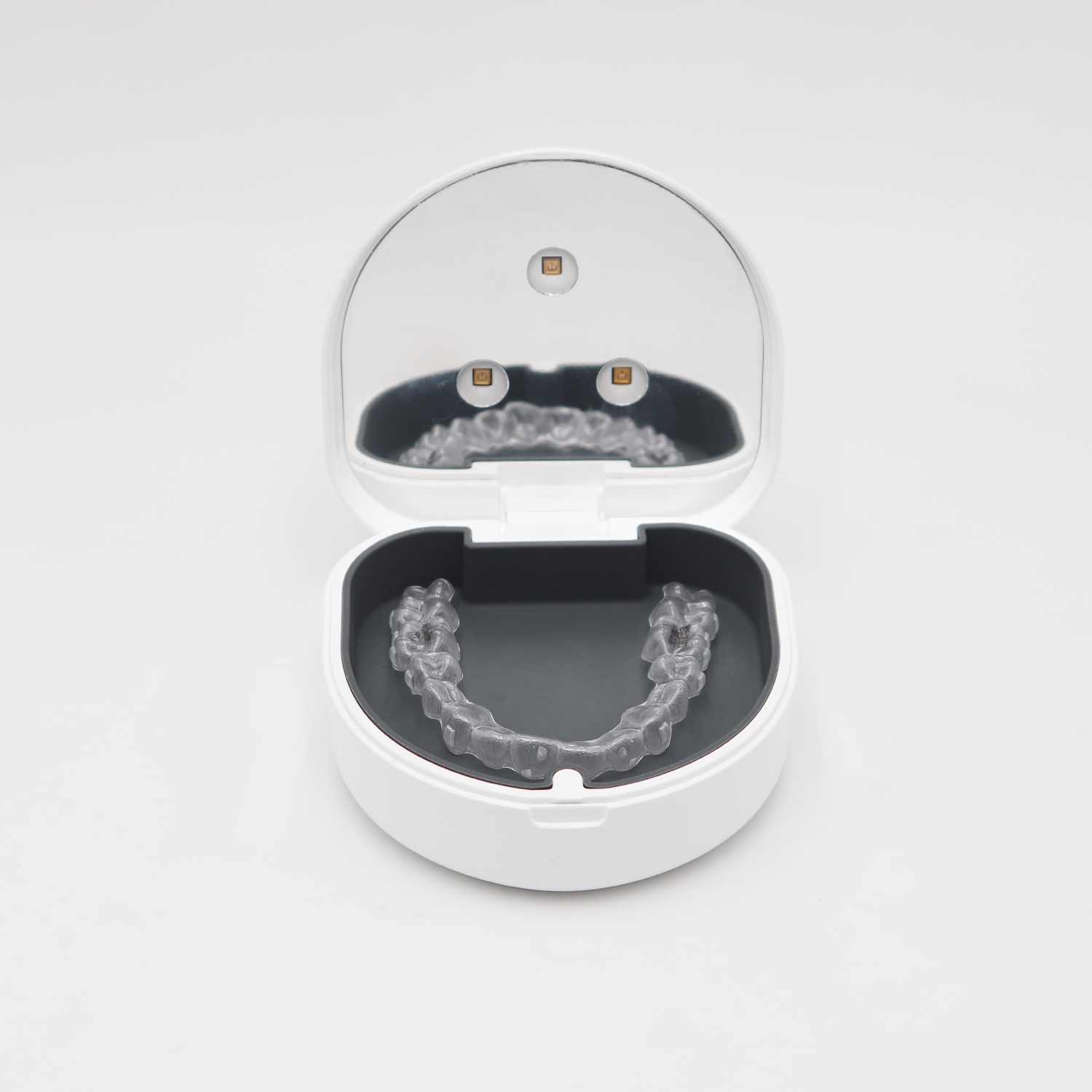

- Open the cover, put braces into the box, cover.

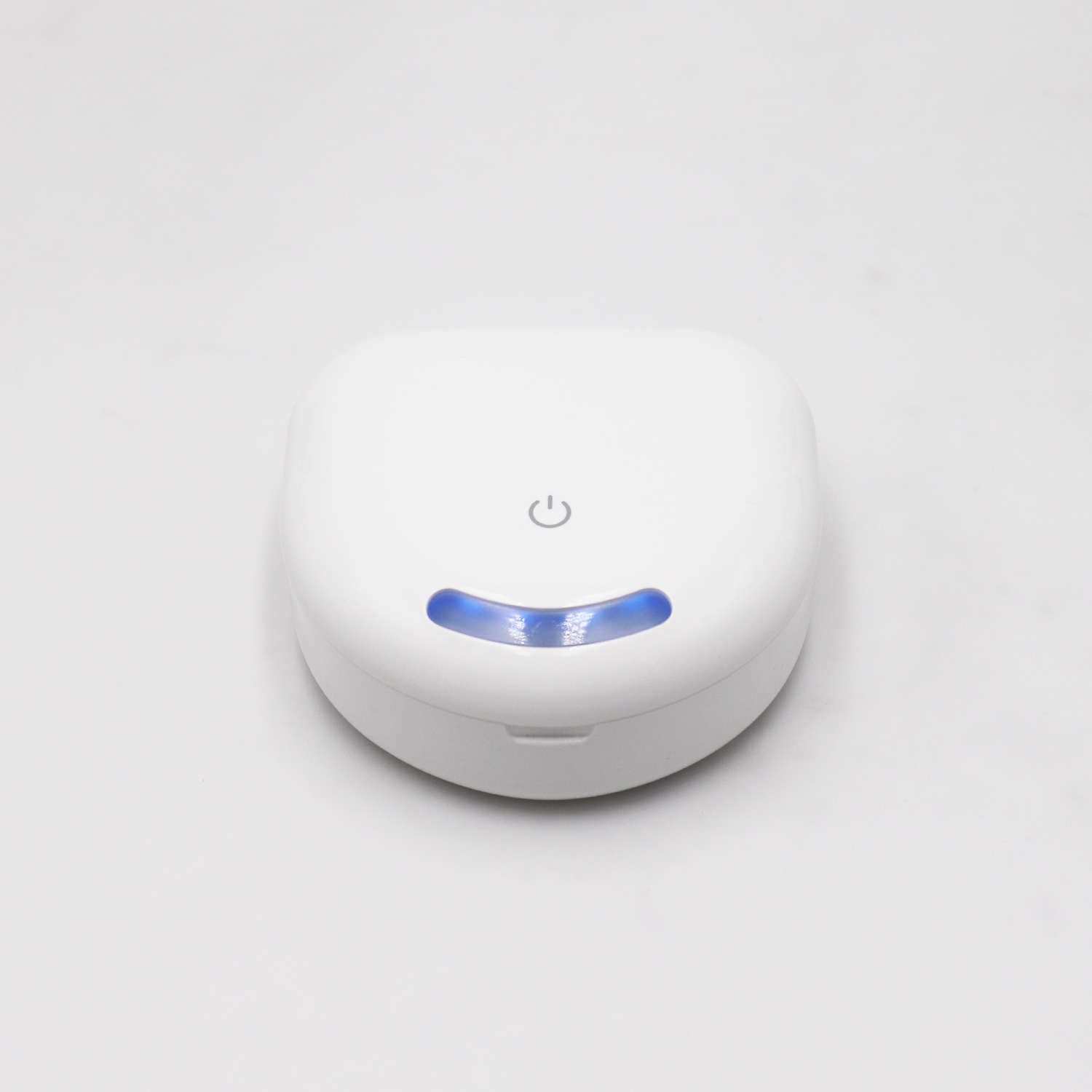

- Touch the switch, when the blue indicator is on and the UVC in the box starts sterilization, stop after 150S, or turn on the red indicator on the lid of the box midway flashing, and automatically stop sterilization.
- Charging the indicator light, red light, full charge green light, every full charge, can be used about 25 times.
