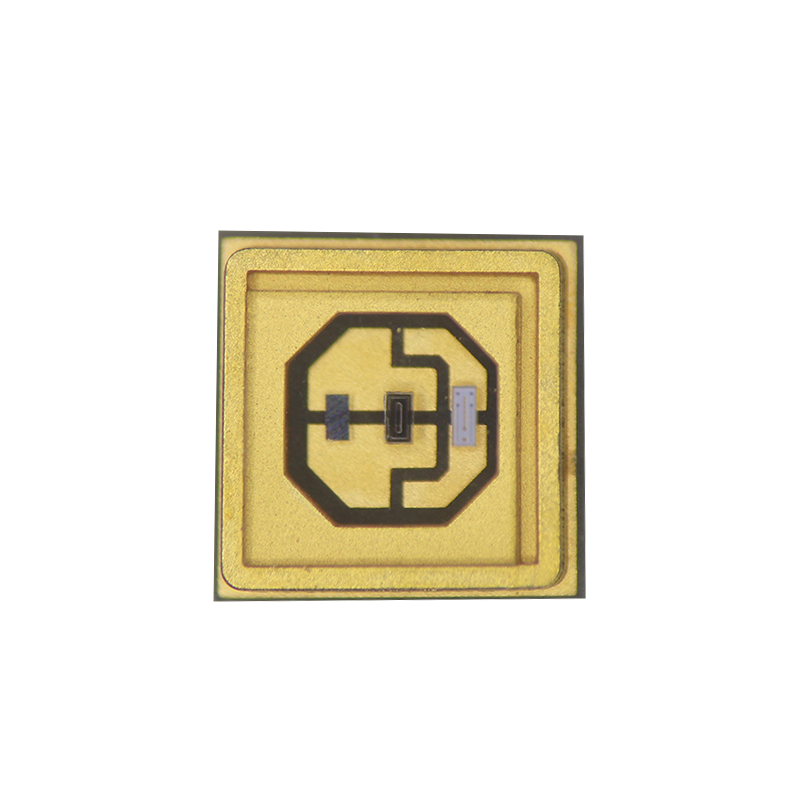

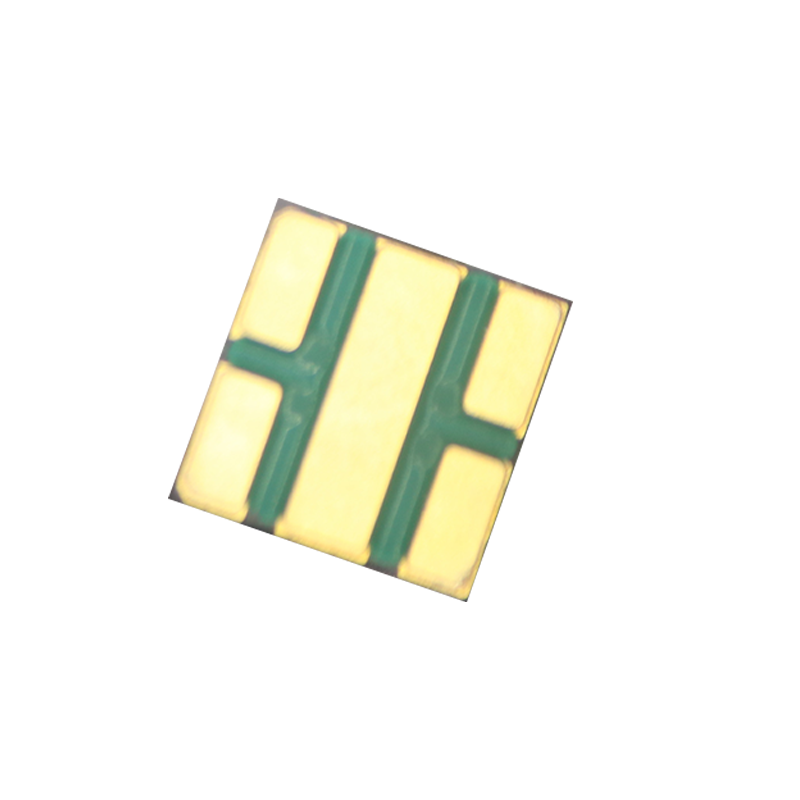

UVA+C LED 275nm+400nm-120°-10*20mil

Name: UVA+C LED 275nm+400nm-120°-10*20mil
SKU: 18072956369235817355681885
Price: 0.25 USD
Availability: OutOfStock

$11.50 USD

Amount

UVA+UVC (275nm+400nm) * 1pcs UVA+UVC (275nm+400nm) * 50pcs UVA+UVC (275nm+400nm) * 200pcs UVA+UVC (275nm+400nm) * 1000pcs

Quantity

Features

Pipe core: a deep ultraviolet UVC chip, one UVA chip
High thermal conductivity alumina ceramic bracket, low thermal resistance, high reliability
Built-in Zener Diode, anti-voltage protection
High transmission rate quartz glass lens package
Lead free product RoHS compliant.

Surface sterilization: medical appliances, maternal and infant supplies, smart toilet, refrigerator, tableware cabinet, fresh-keeping box, smart trash can, Thermos Cup, escalator, hand and ticket machine buttons and other high-frequency public contact surfaces
Still Water Sterilization: Drinking Water tank, humidifier, ice machine
Mobile Water Sterilization: Mobile Water Sterilization Module, Direct Drinking Water Machine;
Air Sterilization: Air Purifier, air conditioning;
Industrial Applications: Medical phototherapy, fluorescence spectrum detection, optical sensors, biological analysis/detection, anti-counterfeit detection, etc.

Type	Items	Symbol	Test Condition	Min	Typical	Max	Unit
UVC+UVA	Radiant Power	Φe	IF=40mA(UVC)	5	-	12	mW
	Radiant Power	Φe	IF=40mA(UVA)	20	-	60	mW
	Forward Voltage	VF	IF=40mA(UVC)	5.0	-	7.5	V
	Forward Voltage	VF	IF=40mA(UVA)	3.0	-	3.6	V
	Peak Wavelength	WLP	IF=40mA(UVC)	270	-	280	nm
	Peak Wavelength	WLP	IF=40mA(UVA)	390	-	410	nm
	Spectral Half-Width	FWHM	IF=40mA(UVC)	8	-	15	nm
	Spectral Half-Width	FWHM	IF=40mA(UVA)	8	-	15	nm
	Reverse Current	IR	VR=-5V	0	-	1	uA
	Luminous Angle	2θ1/2	IF=40mA	-	120	-	Deg.

Parameter	Symbol	Rating	Unit
Forward Current(UVC)	If	40	mA
Forward Current(UVA)	If	60	mA
Junction Temperature	TJ	110	°C
Thermal Resistance	RthJ-S	40	°C/W
Soldering Temperature	Tsol	260 (<=10s)	°C
Storage Temperature	Tstg	-25~60	°C
Antistatic ability (HBM)	ESD	>1000 (90%)	V

Voltage Binning Table @IF=40mA (Unit: V)

BIN CODE	MIN	MAX	BIN CODE	MIN	MAX
VF-A	5.0	5.5	VF-A	3.0	3.6
VF-B	5.5	6.0
VF-C	6.0	6.5
VF-D	6.5	7.0

Wavelength Binning Table @IF=40mA (Unit: nm)

BIN CODE	MIN	MAX		BIN CODE	MIN	MAX
WC-A	265	285		WC-A	390	410

Luminous Binning Table @IF=40mA (Unit: mW)

BIN CODE	MIN	MAX		BIN CODE	MIN	MAX
LF-A	5	12		LF-A	20	60

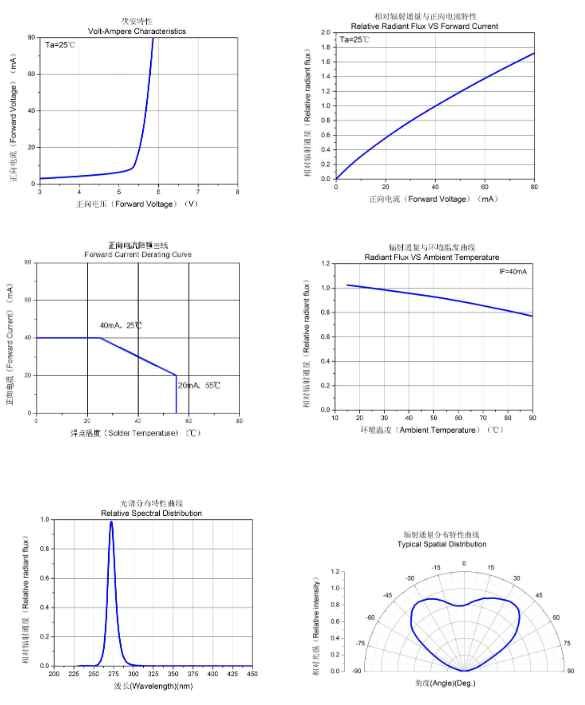

Typical Characteristics (Tₐ=25℃)

Warranty period	1. Module service life L70 > 10,000 hours; 2. One-year basic warranty provided; industrial-grade modules may be extended (requires signing a customized agreement).
Core Coverage Scope	1. Guaranteed zero ozone and zero mercury pollution; 2. During the warranty period, we cover issues such as reduced sterilization efficiency (below the 99.99% standard) due to material/manufacturing defects, UVC chip failure, or optical reflection material problems, providing free repair or replacement services.
Exemptions from Liability	This clause covers damage or loss caused by factors unrelated to the product itself, such as improper installation, improper use, or unauthorized disassembly of the equipment.
After-sales support	1. Provide multilingual operating manuals (including UVC module maintenance guides) with 48-hour remote video troubleshooting support; 2. Supply product inspection reports (e.g., Guangdong Provincial Microbial Analysis Test Report) to assist with compliance audits; 3. Offer technical integration support for bulk purchasers (e.g., water purifier manufacturers), guiding module compatibility and installation with end devices.
Safety and Quality Issues	If safety incidents or product discontinuation occur due to LEDINTRO's product quality issues, LEDINTRO shall bear full responsibility and assist in investigating the cause upon confirmation by both parties or a mutually agreed third-party institution.
	LEDINTRO reserves the right of final interpretation.
