0.5 GPM/min UV LED Water Sterilizer(LEDINTRO-PIPE-2F)

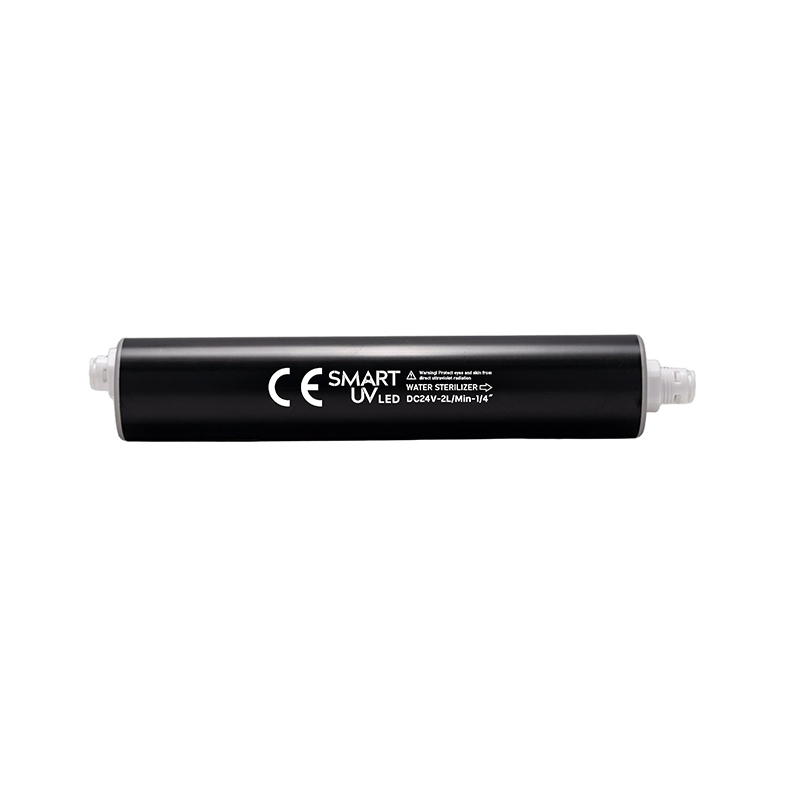

Name: LEDINTRO-PIPE-2F UVC LED Water Purifier (0.5 GPM)
Brand: U-Vcare
SKU: LEDINTRO-PIPE-2F
Price: 109.00 USD
Availability: InStock

$88.99 USD $122.99 USD Save $34.00 USD

Quantity

✅1. Proven 275nm UV-C Disinfection Technology

Uses 275nm UV-C LED, the most effective wavelength for disinfection, Directly destroys bacteria and virus DNA/RNA, Stops microorganisms from reproducing at the source
Delivers a ≥99.9% disinfection rate, Effectively reduces harmful microorganisms in water, Provides safer water for drinking, washing, and daily use

✅ 2. Broad-Spectrum Protection Against Common Pathogens

It can disinfect viruses in water: Escherichia coli / Salmonella / Shigella / Vibrio cholerae / Legionella / Influenza virus, coronavirus, etc. / Aquatic algae
No chlorine, no chemicals, no additives, Does not affect water taste, smell, or composition, No harmful byproducts or secondary pollution

✅ 3. Ultra-Fast Disinfection in Just 2 Seconds

Eliminates 99.9% of bacteria in only 2 seconds, Water is disinfected instantly as it flows through. No waiting, no change to daily water usage

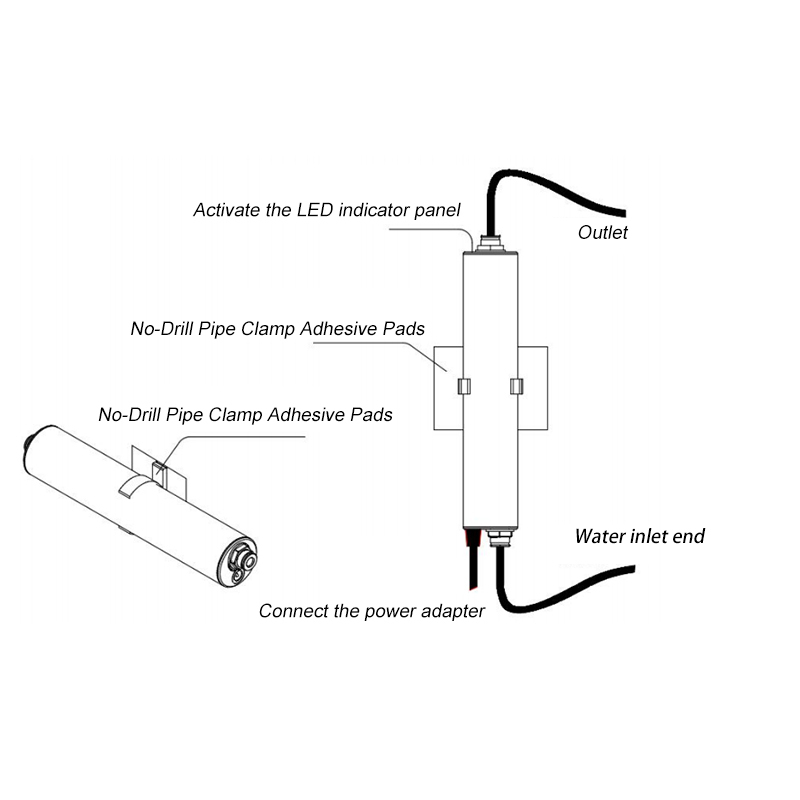

✅ 4. Easy Installation – No Tools, No Hassle

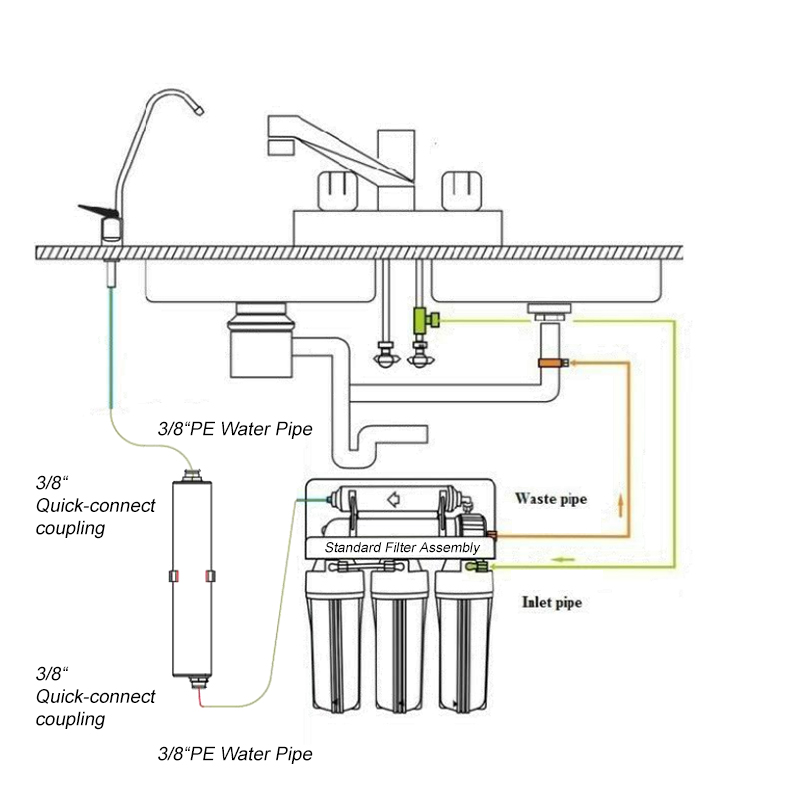

Simple inline design fits easily into existing water systems
No complicated wiring or plumbing required
Install in minutes without professional help

✔ Anyone can install it quickly, even without technical experience

Typical Use Scenarios:

🏠 Home Water Protection
🚿 Bathroom & Shower Water
🏢 Office & Commercial Use
🚐 Travel, RV & Outdoor Use
🌍 Areas with Unstable Water Quality

Product Description

1. Product Overview:

UV sterilization for flowing water
Built-in dynamic UVC-LED sterilization module
2-minute quick change (1/4")
UV wavelength: 265–285nm
Achieves >99.9% sterilization rate for dynamic water (2L/min)
UVC LED is mercury-free
Initial light emission with preheating, operating junction temperature: Tj < 65°C
UV intensity margin design to ensure ultraviolet strength
PTFE film patented design
Static pressure resistance: ≥20kg

Note: LED lifespan: L80>2000Hrs

2. Main Applications:

Dynamic water sterilization
Water sterilization for schools, hospitals, and households
Smart water dispenser sterilization
Dental chair waterway sterilization
Medical beauty waterway sterilization
Water purification systems
Ice-making machines

2.1. Product Specifications

2.1.1Main Features:

Dimensions: L235×Φ40mm
Rated voltage: 24V
Radiant optical power: Approximately 80mW at 2L/min, depending on product specifications and the number of lamp beads

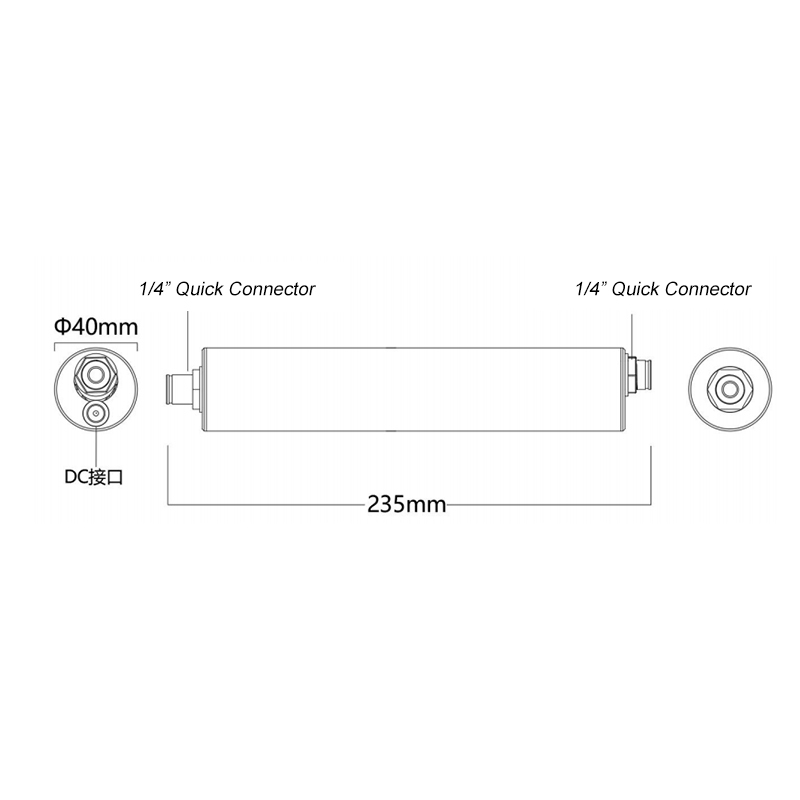

2.1.2. Structural dimensions

3. Other Features

Product	Flow Rate (L/min)	Sterilization Rate	Input Power (W)	Input Voltage (V)
LEDINTRO-2PRO-PIPE-2F	2.0	≥99.9%	3.5	12/24

Notes:

The test standard for dynamic water sterilization rate (spiked without filtration) refers to Disinfection Technical Specifications (Ministry of Health, 2002 Edition, Part 2, 2.1.4.1).
Wavelength peak (λp): 275–282nm, measurement accuracy: ±5nm.
Radiant optical power (Φe): measurement accuracy: ±5%.
Input voltage: measurement accuracy: ±0.2V.

4. Package List

Sterilization tube
Power adapter
Drill-free water pipe clip adhesive
Instruction manual
Certificate of conformity

Compliant with RoHS requirements

Shippinh Policy

Return Policy

Professional Team

Warranty Period

Warranty period	1. Module service life L70 > 10,000 hours; 2. One-year basic warranty provided; industrial-grade modules may be extended (requires signing a customized agreement).
Core Coverage Scope	1. Guaranteed zero ozone and zero mercury pollution; 2. During the warranty period, we cover issues such as reduced sterilization efficiency (below the 99.99% standard) due to material/manufacturing defects, UVC chip failure, or optical reflection material problems, providing free repair or replacement services.
Exemptions from Liability	This clause covers damage or loss caused by factors unrelated to the product itself, such as improper installation, improper use, or unauthorized disassembly of the equipment.
After-sales support	1. Provide multilingual operating manuals (including UVC module maintenance guides) with 48-hour remote video troubleshooting support; 2. Supply product inspection reports (e.g., Guangdong Provincial Microbial Analysis Test Report) to assist with compliance audits; 3. Offer technical integration support for bulk purchasers (e.g., water purifier manufacturers), guiding module compatibility and installation with end devices.
Safety and Quality Issues	If safety incidents or product discontinuation occur due to LEDINTRO's product quality issues, LEDINTRO shall bear full responsibility and assist in investigating the cause upon confirmation by both parties or a mutually agreed third-party institution.
